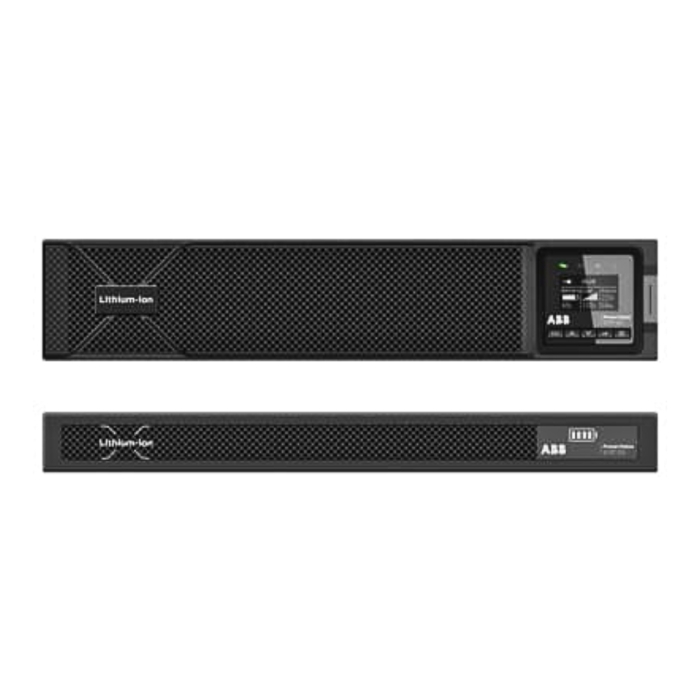

ABB 3 kVA PowerValue 11RT G3 LIB UPS Reliable Backup Solution
The ABB UPS PowerValue 11RT G3 LiB 3 kVA (Catalogue Number 4NWP100300R0004) is an online double‑conversion uninterruptible power supply (UPS) with lithium‑ion battery technology designed to deliver continuous, high‑quality power for critical single‑phase electrical loads. It provides 3000 VA / 3000 W output in a compact rack or tower form factor, making it suitable for IT environments such as server closets, telecommunications racks, and edge infrastructure deployments where space efficiency and reliable power continuity are essential.
Product Overview
Power Protection and Performance
This UPS employs online double‑conversion (VFI) topology, continuously regenerating output power to isolate connected equipment from input power disturbances including surges, voltage sags, frequency fluctuations, electrical noise, and harmonics. The result is a pure sine‑wave output with stable, clean power delivery for mission‑critical hardware.
With a 3000 VA / 3000 W capacity, this model supports moderate loads such as servers, networking switches, routers, storage devices, and communication systems that require dependable power backup and conditioning.
Battery Technology and Runtime
The built‑in lithium‑ion battery delivers efficient energy storage with higher energy density, faster recharge rates, and extended service life compared with conventional UPS battery types. This technology supports reliable runtime during mains outages, sufficient for safe shutdowns or bridging to standby power sources.
Lithium‑ion also performs more consistently across a broader temperature range while reducing overall UPS weight and lowering maintenance overhead — key advantages in densely populated rack installations or distributed IT environments.
The UPS can also be paired with up to four external battery modules (EBMs) to further extend backup time for more demanding runtime requirements.
Key Product Features
-
Online double‑conversion (VFI) UPS topology delivering continuous, clean AC power.
-
3000 VA / 3000 W rated output suitable for moderate critical loads.
-
Integrated lithium‑ion battery for extended lifespan, faster recharge, and improved energy density.
-
Rack/tower design (2U) that fits standard 19‑inch cabinets or standalone installations.
-
IP20 indoor‑rated enclosure and IEC C20 input connection for structured power integration.
-
Support for up to four external battery modules (EBMs) to extend runtime.
-
Operating temperature range 0–40 °C for typical IT and telecom environments.
| Product Name | ABB 3 kVA PowerValue 11RT G3 LIB UPS Reliable Backup Solution |
|---|---|
| Output Power | 3.0kVA/ 3000VA |
| Output Voltage | 3×380 V/220 V+N, 3×400 V/230 V+N, 3×415 V/240 V+N |
| Input Frequency | 50/60 Hz nominal (consistent with online UPS products) |
| Interface Ports | LCD |
| Control Panel | LCD |
| Battery Type | Lithium‑ion battery (built‑in) — indicated by “LIB” designation. |
| Dimensions | Width: 438 mm; Depth: 445 mm; Height: 85.5 mm (2U form factor) |
| Weight | 21.450000 |
| Manufacturer | ABB |
| Color | Black |
| Country of Origin | China |
Product Datasheet
