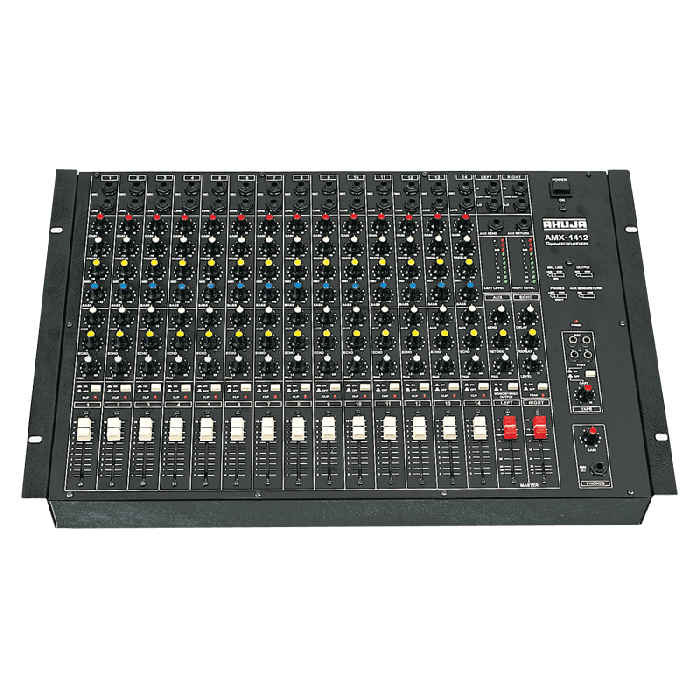

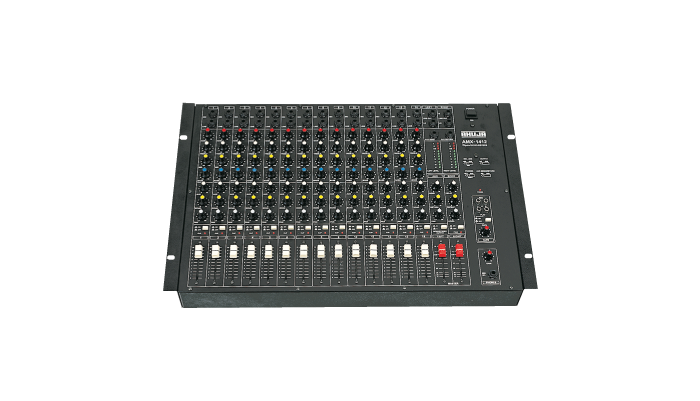

Ahuja AMX1412 Echo Reverb Effects Audio Mixer
Key Features Of The Ahuja AMX1412
- 14‑channel professional audio mixer with balanced/unbalanced mic & line inputs on each channel for flexible signal handling.
- Built‑in echo and digital reverb effects with adjustable delay, repeat, and level controls to enhance sound depth.
- AUX send/return and MONO/STEREO output switching for versatile routing and external effects integration.
- Individual GAIN, EQ (Bass/Mid/Treble), PAN, and LEVEL controls on all channels with clip LED indicators.
- Wide frequency response (30 Hz–20 kHz) and robust build quality suited for live sound, recording, or PA applications.
PRODUCT OVERVIEW
Input Channels: Each channel has a separate 1/4” balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals. AUX Control: This controls the level of the channel in the final mix to Aux Send output. AUX Send & AUX Return. These have been provided for sending the pre-fader output of channels for monitoring or for adding a special effects unit. MONO/STEREO Output: Mono output is available from either the left or right output jacks when the switch is in the ‘Mono’ position.
These have been provided for sending the pre-fader output of channels for monitoring or for adding a special effects unit. MONO/STEREO Output: Mono output is available from either the left or right output jacks when the switch is in the ‘Mono’ position.
| Product Name | Ahuja AMX1412 Echo Reverb Effects Audio Mixer |
|---|---|
| Weight | 9.398434 |
| Frequency Response | 30Hz - 20kHz (+0, -1dB) |
| Dimensions | W633 × H93 × D420 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
