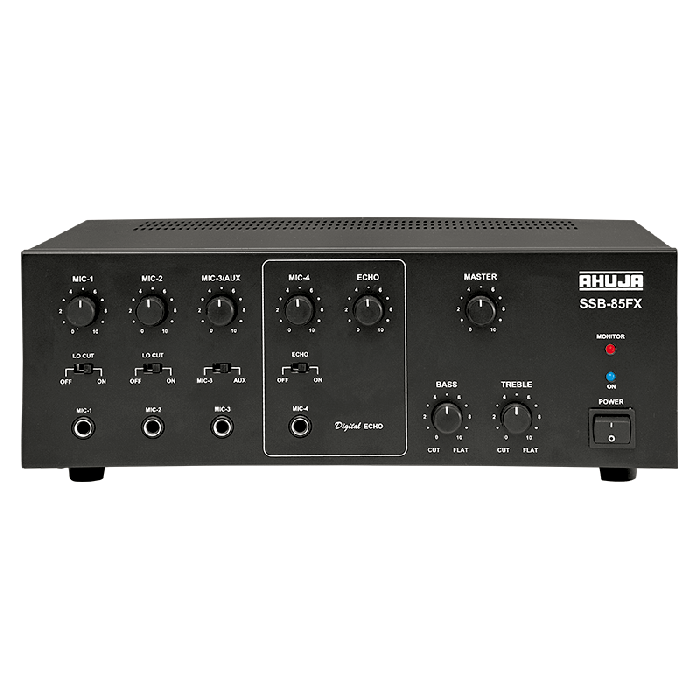

Ahuja SSB85FX 4-Mic & 1-Aux Input Mixer Amplifier
Quick Overview
- 80 W output with 4 mic + 1 aux inputs
- Built-in digital echo on mic‑4
- LO‑CUT and input selection switches
- Preamp output for recording/booster
- AC/DC automatic power transfer
PRODUCT OVERVIEW
4 Mic & 1 Aux Inputs. Built-in digital echo effect on Mic-4. Mic-3 is alternate to Aux through a switch. Mic-1 & Mic-2 have LO-CUT facilities. Preamplifier output for connecting to a booster amplifier and for recording the program. Cut-type bass & treble controls. Instant transfer to DC power (car battery) if AC power fails.
|
Power Output |
110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at kHz |
|
Input Channels |
4 × Mic 0.65 mV/4.7 kΩ, 1 × Aux 100 mV/470 kΩ |
|
Frequency Response |
65-15,000 Hz ±3 dB |
|
Signal-to-Noise Ratio |
60 dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200 mV/600 Ω |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω, 70V & 100V |
|
Power Supply |
AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 180VA DC: 3A |
|
Dimensions |
W355 × H133 × D285 mm |
|
Weight |
8.5 kg |
| Product Name | Ahuja SSB85FX 4-Mic & 1-Aux Input Mixer Amplifier |
|---|---|
| Weight | 8.495785 |
| Frequency Response | 65-15,000Hz ±3dB |
| Power Capacity | AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
| Dimensions | W355 × H133 × D285 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
Product Datasheet
