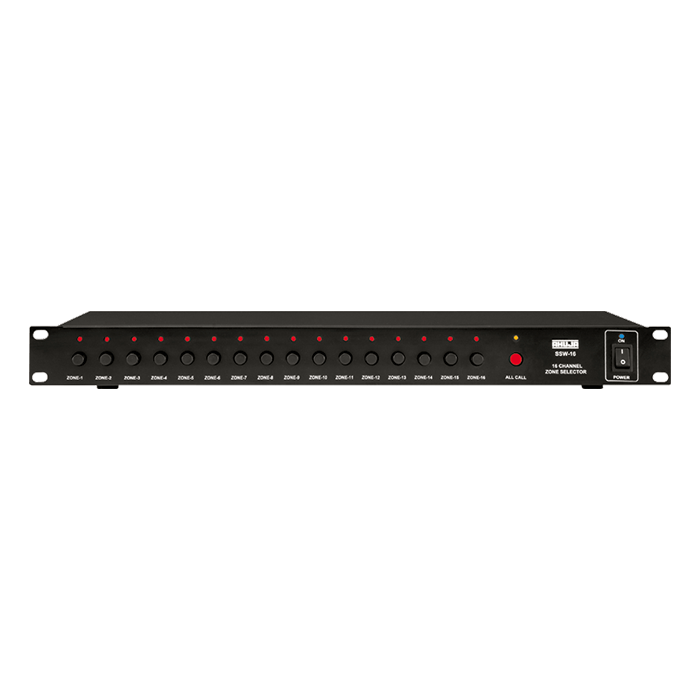

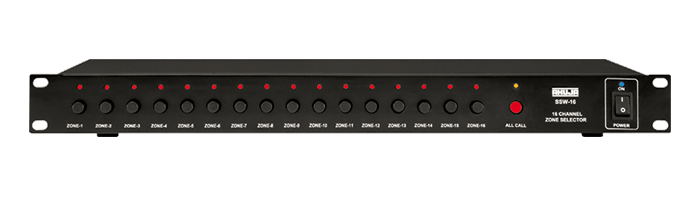

Ahuja SSW16M 16 Channel 1x100V Input Mixer Zone Selector
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Price shown is per unit. Sold exclusively in packs of 3.
Quick Overview
- 16‑zone selector with 1×100 V input.
- ALL CALL relay for system-wide announcements.
- LED indicators for each zone.
- AC 220–240 V or 24 V DC power.
- Compact, durable design for PA systems.
PRODUCT OVERVIEW
SSW-16M 16 Channel Zone Selector: Compact and reliable manual zone selector with provision for switching a 100V audio signal to one or more of up to 16 zones. 1 x 100V Input, 16 x 100V Outputs, Manually Switchable. When multiple units of SSW-16M are used, ALL CALL activation is possible from any one SSW-16M by using the LOOP THROUGH facility. Built-in relay for ALL CALL. LED indication of selected zones.
|
Input |
1 x 100V (nominal) |
|
Outputs |
16 x 100V (nominal) |
|
Switches |
16 zone selector switches, plus ALL CALL and power ON/OFF. |
|
Power Supply |
AC 220-240V, 50/60Hz ; DC 24V (2 x 12V Car Battery) |
|
Dimensions |
W483 × H53 × D180 mm |
|
Weight |
2.73 kg |
| Product Name | Ahuja SSW16M 16 Channel 1x100V Input Mixer Zone Selector |
|---|---|
| Weight | 2.807737 |
| Power Capacity | AC 220-240V, 50/60Hz ; DC 24V (2 x 12V Car Battery) |
| Dimensions | W483 × H53 × D180 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
Write Your Own Review
Product Datasheet
