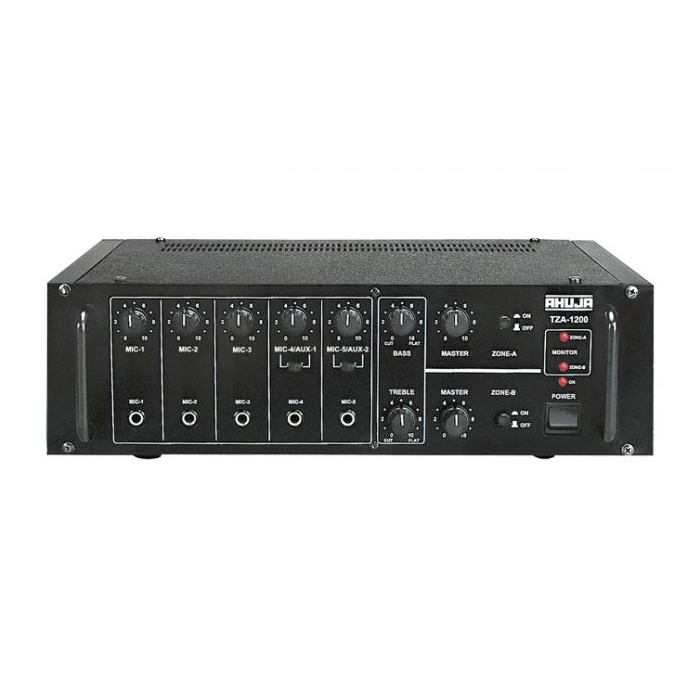

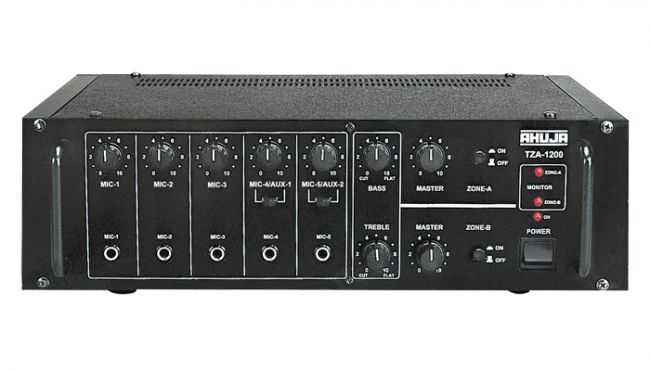

Ahuja TZA1200 2-Microphone 2-Aux Input PA Amplifier
Quick Overview
- Dual-zone PA with 2 mics + 2 aux inputs
- 60W + 60W RMS power output
- Bass & treble controls
- AC/DC (220–240V/12V) operation
- Zone on/off & pre-amp output
PRODUCT OVERVIEW
Ahuja TZA-1200® 120 WATT 2 ZONE PA MIXER AMPLIFIER 5 Mic & 2 Aux Inputs. 60W+60W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, a zone on/off facility, and AC/DC operation have been provided. TZA-1200 is suitable for small-sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
|
Power Output |
90W + 90W Max., 60W + 60W RMS at 10% THD, 55W + 55W RMS at 5% THD, 50W + 50W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at kHz |
|
Input Channels |
5 × Mic 0.6 mV/4.7 kΩ, 1 × Aux 100 mV/470 kΩ, 1 × Aux 200 mV/250 kΩ (RCA Jack) |
|
Frequency Response |
70-15,000 Hz ±3 dB |
|
Signal-to-Noise Ratio |
60 dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200 mV/600 Ω |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω & 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 250VA DC: 5A |
|
Dimensions |
W400 × H130 × D290 mm |
|
Weight |
10.1 kg |
| Product Name | Ahuja TZA1200 2-Microphone 2-Aux Input PA Amplifier |
|---|---|
| Weight | 10.096966 |
| Frequency Response | 70-15,000Hz ±3dB |
| Power Capacity | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Dimensions | W400 × H130 × D290 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
