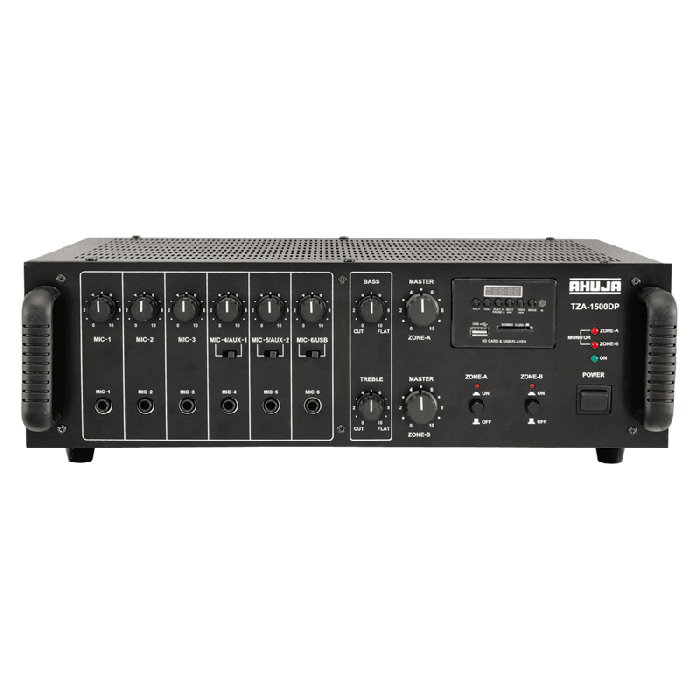

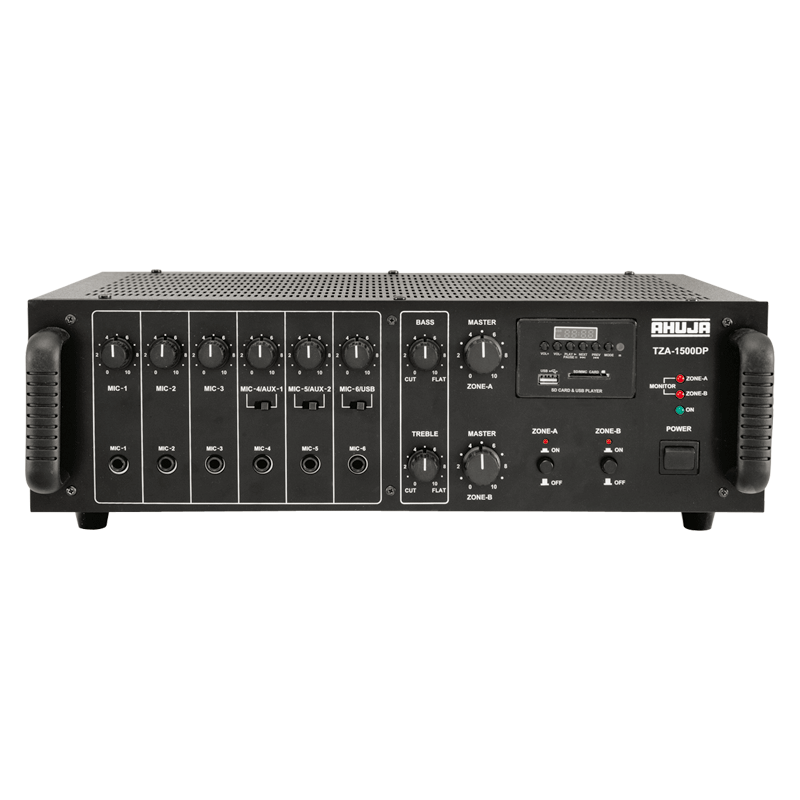

Ahuja TZA1500DP, w/ USB, 6-Microphone & 2-Aux Input, PA Amplifier
TZA-1500®DP Two Zone 80W+80W w/ USB 6-Microphone 2-Aux input. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
PRODUCT OVERVIEW
TZA-1500®DP Two Zone 80W+80W w/ USB 6-Microphone 2-Aux input. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone On/Off facility, AC/DC operation have been provided. TZA-1200 is suitable for small sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
|
Power Output |
100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ |
|
Frequency Response |
65-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Output |
Preamp 200mV/600Ω, Line 1V/1kΩ |
|
Speaker Output |
4Ω, 8Ω, 70V & 100V |
|
Digital Player |
MP3 Player with USB, SD and MMC Card Reader |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 300VA DC: 6A |
|
Dimensions |
W460 × H155 × D310 mm |
|
Weight |
14.5kg |
| Product Name | Ahuja TZA1500DP, w/ USB, 6-Microphone & 2-Aux Input, PA Amplifier |
|---|---|
| Weight | 14.50 Kg |
| Frequency Response | 65-15,000Hz ±3dB |
| Power Capacity | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Dimensions | W460 × H155 × D310 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
