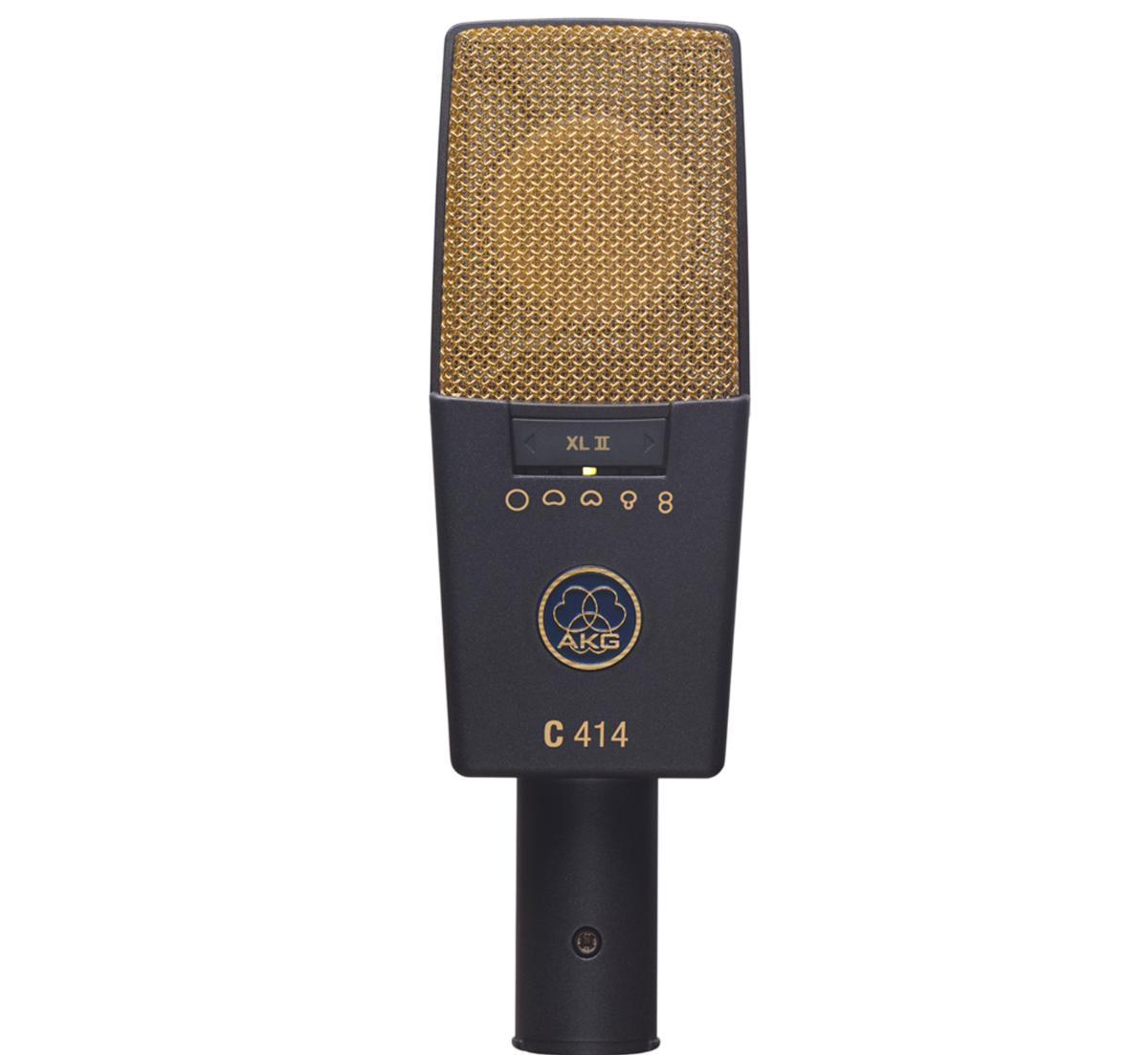

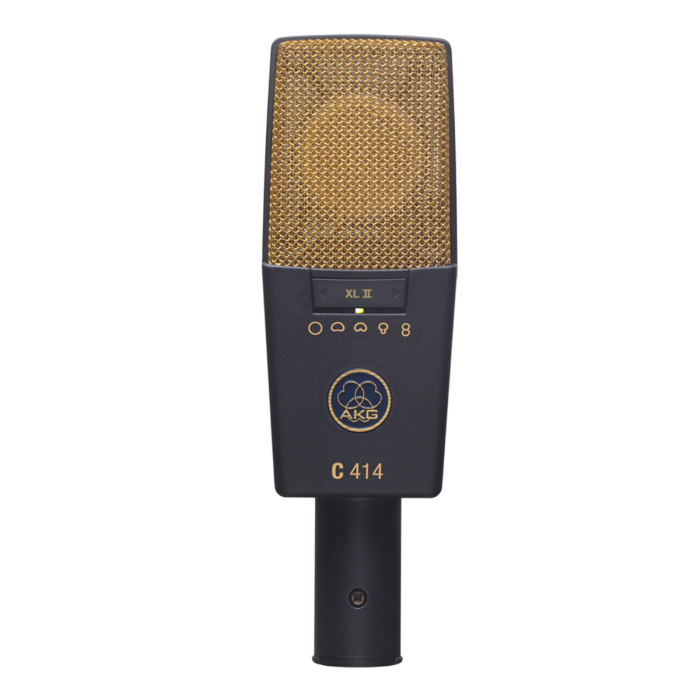

AKG C414 XLII Multi-Pattern Large-Diaphragm Condenser Studio Recording Microphone
AKG C414 XLII Multi-Pattern Large Diaphragm Condenser Microphone. The classic C414 XLII Multi-Pattern Large-Diaphragm Condenser Microphone from AKG is a staple within the audio industry. Equipped with nine selectable polar patterns, three attenuation levels, and three switchable bass-cut filters, the C414 XLII remains one of the most versatile condenser microphones for recording vocals, drums, and acoustic & amplified instruments in the studio or on stage.
PRODUCT OVERVIEW
The classic C414 XLII Multi-Pattern Large-Diaphragm Condenser Microphone from AKG is a staple within the audio industry. Equipped with nine selectable polar patterns, three attenuation levels, and three switchable bass-cut filters, the C414 XLII remains one of the most versatile condenser microphones for recording vocals, drums, and acoustic & amplified instruments in the studio or on stage.
This microphone closely approximates the sound of the legendary AKG C12. A slight high-frequency rise at 3 kHz and above helps compensate for the natural loss of high frequencies that occurs at a distance, making the C414 XLII an excellent choice for miking vocals & instruments that are positioned far away. The 1" edge-terminated dual-diaphragm transducer combined with the low-noise electronic circuitry provides a wide dynamic range of 134 dB and can handle SPL up to 158 dB, for a neutral and detailed sound.
Features include a peak-hold LED to alert you if overload peaks occur and a lock mode so the microphone settings cannot be changed unintentionally. The elastic capsule suspension minimizes structurally transmitted noise from chassis vibration. The rugged all-metal body ensures efficient rejection of RF interference and makes this microphone well suited to withstand the rigors of studio and stage handling.
Built and designed in Austria, the C414 XLII comes with a metal carrying case, a spider-type shockmount, a pop filter, and a foam windscreen.
The classic C12 sound
The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect—the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Key Features
- Cardioid, Omnidirectional & Figure-8
- Dual 1-Inch Capsule
- Switchable 6, 12 & 18 dB Pads
- Three Switchable Bass-Cut Filters
| Product Name | AKG C414 XLII Multi-Pattern Large-Diaphragm Condenser Studio Recording Microphone |
|---|---|
| Weight | 0.299371 |
| Frequency Range (-10 dB) | 20 Hz to 20 kHz |
| Maximum SPL | 140 dB SPL |
| Impedance | 200 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 23 mV/Pa |
| Lengt | 38 mm |
| Max. Power Consumption | 4.5 mA |
| Dimensions | L: 6.3" / L: 16 cm |
| Manufacturer | AKG |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
