PRODUCT OVERVIEW

Just pure sound

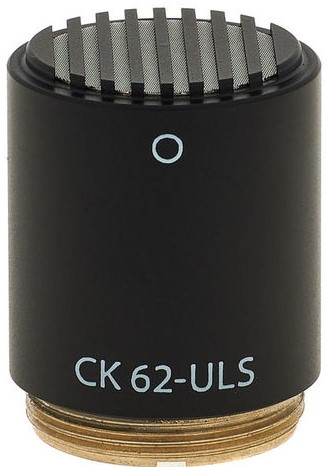

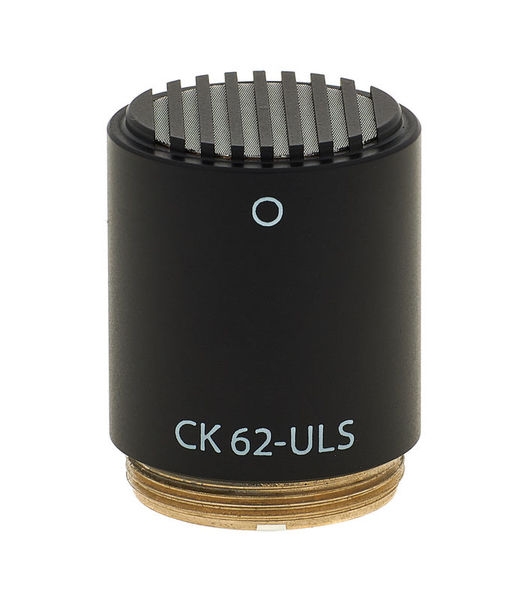

The CK62 ULS professional small condenser capsule is characterized by a ruler-flat frequency response and an omnidirectional polar pattern. It is one of the most neutral small-diaphragm capsules ever, and a perfect choice for demanding applications such as classical-music recording. The CK62 ULS is widely used in recording studios, in opera houses and on theater stages around the world.

The CK62 ULS works exclusively with the C480 B pre-amp. To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning and gold-plated contacts. Careful attention to detail and the highest manufacturing standards make the Ultra Linear Series modular system the choice of experienced technicians worldwide.

Microphone Capsule

• High-quality omnidirectional capsule with an extremely flat 0° frequency response
• Temperature stable and reliably manufactured
• Gold-plated and self-cleaning contacts for a high degree of climatic resistance
• Similar to the CK 61, but with an omnidirectional polar pattern
• For a larger proportion of the room reverberation in the sound
• A foam windscreen is included in the delivery
• For use with the C 480 B-ULS preamplifier
• Audio frequency bandwidth: 20 - 20,000 Hz
• Sensitivity: 40 / 20 / 6.3 mV / Pa (-28 / -34 / -44 dBV)
• Max. SPL: 134 / 140 / 144 dB (k = 0.5 %)
• Equivalent noise level (CCIR 468-3) 23 / 21 / 28 dB
• Equivalent noise level (A weighted): 13 / 11 / 17 dB-A
• Signal / Noise ratio (A weighted) 81/83/77 dB
• Attenuation: +6 / 0 / -10 dB, switchable
• Voltage via C 480 B
• Power consumption via C 480 B
• Matte black surface
• Dimensions: 21 Ø x 23 / 27 mm
• Net weight: 25 g
