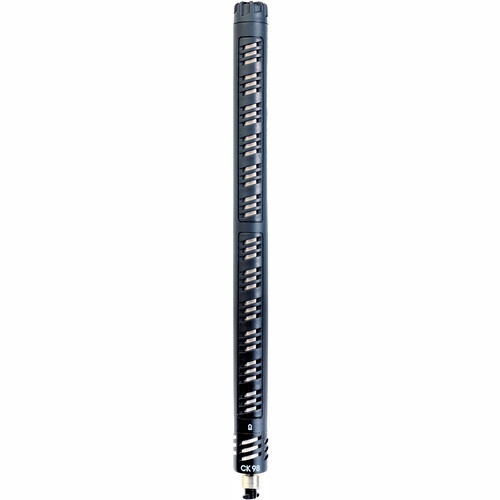

AKG CK98 Hyper Cardioid Shotgun Condenser Microphone Capsule
AKG CK98 Hyper Cardioid Shotgun Condenser Microphone Capsule. The AKG CK 98 is a highly sensitive shotgun capsule for use with the SE300 Blue Line power supply. It offers excellent reach, thanks to a very tight polar pattern and exceptionally low self noise. Small size and light weight make the CK 98 ideal for boom applications, while the smooth, wide-band frequency response makes it a superb choice for edge-of-stage and ceiling placements.
PRODUCT OVERVIEW
The AKG CK 98 is a highly sensitive shotgun capsule for use with the SE300 Blue Line power supply. It offers excellent reach, thanks to a very tight polar pattern and exceptionally low self noise. Small size and light weight make the CK 98 ideal for boom applications, while the smooth, wide-band frequency response makes it a superb choice for edge-of-stage and ceiling placements.
Do the twist
The CK98 high-performance small condenser capsule combines high sensitivity and controlled directivity. It offers excellent reach thanks to a very tight polar pattern and exceptionally low self noise. Small size and low weight make the CK98 ideal for boom applications. The smooth, wide-band frequency response makes it a superb choice for edge-of-stage and ceiling placement in theaters. The CK98 is part of the Blue Line Series and works exclusively with the SE300 B pre-amp module. Its robust Modulock bayonet coupling allows quick and easy changing of the capsules.
Features
- Multiple directional capsules and configurations available on a standard powering/output module
- Positive-action Modulock™ bayonet capsule mounting system
- Capsule designs employ gold sputtered diaphragms
- High sensitivity
- High acoustic level capability
| Product Name | AKG CK98 Hyper Cardioid Shotgun Condenser Microphone Capsule |
|---|---|
| Weight | 0.08 Kg |
| Frequency Range (-10 dB) | 20Hz to 20kHz |
| Maximum SPL | 124 dB, 1.0% THD (134 dB with -10 dB Attenuation) |
| Impedance | 200 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 20 mV/Pa |
| Max. Power Consumption | 2.0 mA |
| Dimensions | 10 x 0.7" (254 x 17.78mm) LxW |
| Manufacturer | AKG |
| Color | Black |
| Country of Origin | United States |
