PRODUCT OVERVIEW

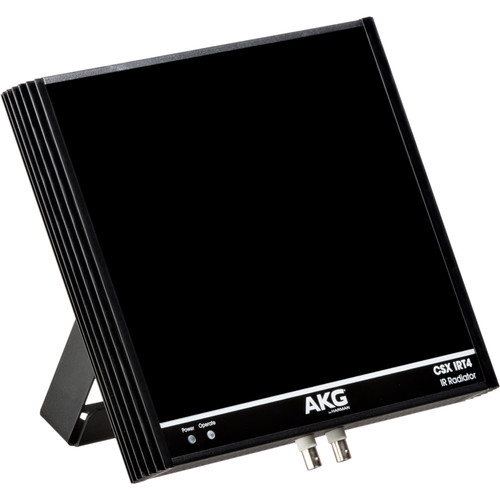

AKG CSX IRT4

The CSX IRT4 10-Channel Infrared Near Field Transmitter from AKG transmits up to ten language channels designed for near field use, with a radiation angle of ±60° to cover the distance of up to 115'. Using PPM (Pulse Phase Modulation) technology, all LED´s cover the same area and distance, regardless the number of channels needed in an application. Hence, exact coverage is ensured even if channel needs change.

The CSX IRT4 can be cascaded almost without limit, due to a signal refresher built in into the transmitter, enabling coverage of very large areas. The transmitter's design eliminates the needs for cooling fans, which also eliminates noise. Clearly visible LED´s make the status readable from the distance, enhancing security for onsite technicians.

Near field transmission

The CSX IRT3 and CSX IRT4 are 10 channel infrared transmitter. Using digital PPM signal always all LED´s cover the same area and distance, regardless the number of channels needed in an application ensuring perfect coverage even with changing channel needs. The CSX IRT3 and 4 can be cascaded almost without limit due to a signal refresher built into all transmitters. Even very large areas can be covered. The transmitters are designed in a way that no cooling fans are needed – they act absolute quiet without any noise. Clearly visible LED´s indicate the status from the distance, providing highest security for the technician on site.

The CSX IRT4 is designed for near field use, e.g. in ceilings above the area to be covered. The radiation angle is +/-60° abd the working distance up to 35m.

Features
