AKG DMS800 DSR800 BD1 AU Reference Two-Channel Digital Wireless Receiver
Please call at +971-4-3360300 or Email Us for Special Pricing!

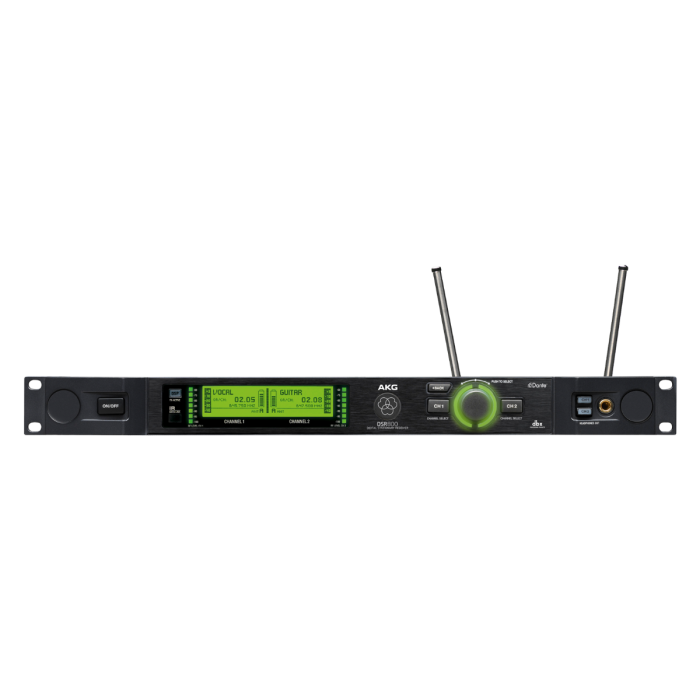

The BD1 band 3380H00100 DSR800 Digital Wireless Stationary Receiver from AKG is a reference, two-channel receiver, which provides a very wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 bodypack transmitter, for line and microphone signals.
PRODUCT OVERVIEW
AKG DMS800
The BD1 band 3380H00100 DSR800 Digital Wireless Stationary Receiver from AKG is a reference, two-channel receiver, which provides a very wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 bodypack transmitter, for line and microphone signals.
For enhanced flexibility, the DSR800 provides two digital audio outputs - for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver's frequency band for active radio frequencies and displaying the spectrum, thereby avoiding noisy frequencies and redirecting signal to the optimum ones available.
- Two channels in a compact 19" metal casing for secure rack-mounting and transportation
- Graphic spectrum analyzer provides a clear overview of radio frequencies
- User-friendly operation by fast and intuitive system setup
- Integrated digital signal processing with low-cut filter, three-band equalizer, dbx compressor and dbx limiter
- Analog and digital audio outputs 2 x balanced XLR, 2 x unbalanced 1/4" jack connectors, AES EBU output and DANTE output
| Product Name | AKG DMS800 DSR800 BD1 AU Reference Two-Channel Digital Wireless Receiver |
|---|---|
| Weight | 3.560700 |
| Power Supply (PoE) | 100 - 240 V AC, 50 - 60 Hz, 0.4 A |
| Frequency | Band 1 = 548.1 – 697.9 MHz |
| Equalizer | 3-band (amplification or padding of the lows, mids and highs) |
| Sensitivity (SPL / 1 W @ 1 m) | 10 dBµV / -97 dBm |
| Audio Outputs | XLR bal. typ. +14 dBu (max.); 6.3 mm jack, un‑balanced typ. +8 dBu |
| Dimensions | Length480 mmHeight45 mm Width230 mm |
| Manufacturer | AKG |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
