PRODUCT OVERVIEW

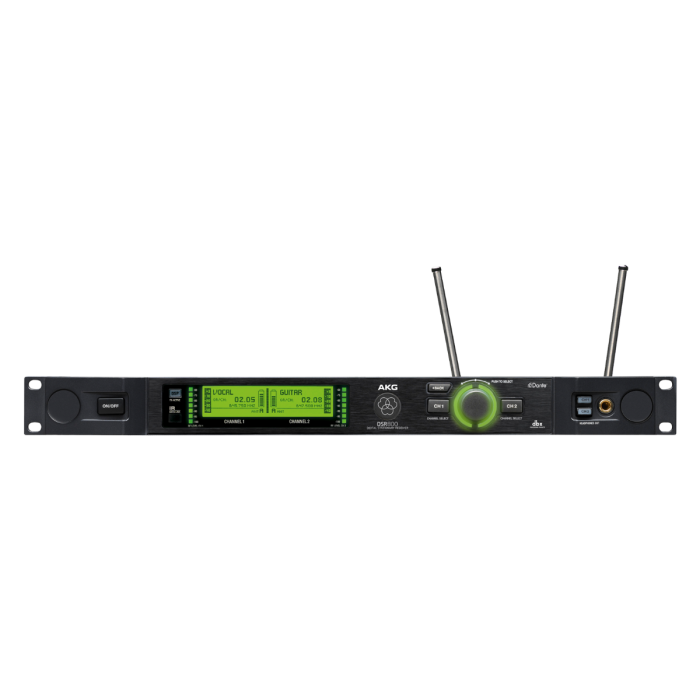

Dual digital receiver for HF DMS800 system, band 2

The DSR800 two-channel digital receiver has a large bandwidth of 150 MHz, allowing easy configuration of multichannel systems in congested radio frequency environments. It is designed to work with DHT800 digital transmitter microphones and DPT800 digital transmitter boxes.
The DSR800 offers two digital audio outputs, one in AES / EBU format and another in DANTE format. It detects interference-free HF channels and synchronizes the transmitters on these frequencies by a simple IR transmission.
Its integrated spectrum analyzer displays the actual state of its frequency band to improve commissioning and monitoring of the radio environment.

•  Two reception channels in a compact 1U chassis
•  Integrated spectrum analyzer for a clear visualization of the radio frequency                  environment
•  User-friendly operating mode thanks to the intuitive and fast configuration system
•  Integrated signal processing: low-cut filter, 3-band equalizer, compressor and limiter
•  Analog and digital outputs : 2 x balanced XLR, 2 x unbalanced 6.35 jack, AES EBU          and DANTE

The DMS 800 digital HF microphone system has been developed to deliver the highest level of audio quality and transmission reliability in all professional PA applications, in fixed or mobile installation, for theater, conference or any other live performance . A direct successor to the DMS700V2, it offers everything that made its predecessor one of the most efficient HF systems of its generation, with the addition of new functionalities that further increase its flexibility of use.

The DMS800 system integrates two digital audio outputs into its receiver, one in DANTE format and one in AES / EBU format. The design and mechanics of its DHT800 transmitter microphone allow the management of interchangeable capsules to offer more flexibility by choosing from the AKG D5, D7 and C5 and Shure models. In addition, the mute switch can be turned into a real on or off command. A network control system allows you to configure and monitor multi-channel systems from a PC computer with Audio Architect software, an Apple iPhone / iPad / iPod® or Soundcraft Vi consoles.
