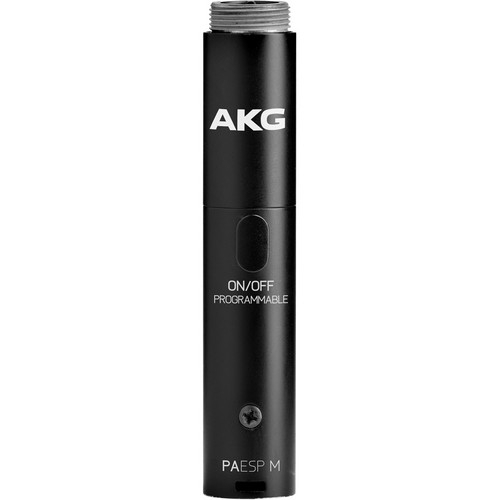

AKG PAESP M Phantom Power Adapter Module with Programmable Switch

PRODUCT OVERVIEW

The AKG PAESP M Phantom Power Adapter is a programmable phantom power module which feeds and powers all DAM+ Series microphone capsules. It features a BCD (binary code decimal) switch, which recalls an operating mode. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The programmable switch offers noiseless switching and rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling.

With its wide voltage range the PAESP M will fit most available microphone mixers and is suitable for fixed and mobile installation in theaters, houses of worship, and in conference rooms. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.

Executive modularity

The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.

Features

• Programmable on/mute/off switch offers noiseless switching

• Selectable operating modes for switchable bass roll off and light-ring function

• Silently switchable 26 dB mute

• RFI Shield technology provides high immunity to radio-frequency interference

• Accepts 9-52V input for almost any available mixer inputs

• Integrated system connector with gold-plated contacts

• Feeds all DAM+ Series capsules for increased flexibility
