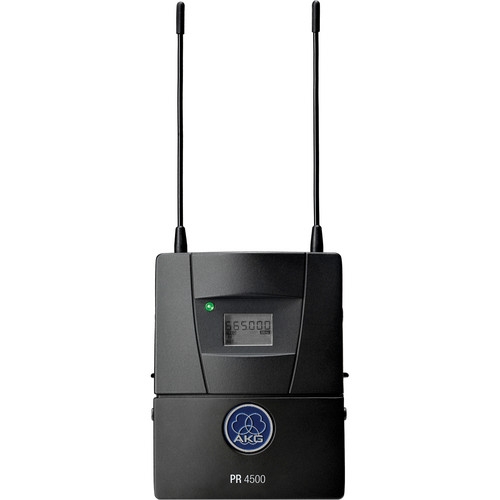

AKG PR4500 Band 8 Reference Wireless Camera Receiver
The AKG PR4500 ENG Pocket Receiver (Band 8) is a two AA battery powered wireless receiver that can be camera mounted and operates on band 8 between 570 to 600 MHz. It features an all-metal body and backlit display that shows a remaining battery life readout. The PR4500 is capable of broadcasting on up to 18 channels simultaneously, which allows for a maximum channel count in bandwidth that increases signal strength.
PRODUCT OVERVIEW
The AKG PR4500 ENG Pocket Receiver (Band 8) is a two AA battery powered wireless receiver that can be camera mounted and operates on band 8 between 570 to 600 MHz. It features an all-metal body and backlit display that shows a remaining battery life readout. The PR4500 is capable of broadcasting on up to 18 channels simultaneously, which allows for a maximum channel count in bandwidth that increases signal strength.
The lightweight, six-ounce body was designed for audio for video applications, and the included hot shoe adapter allows the PR4500 to be mounted to a variety of camcorders, DSLR cameras, or other A/V gear. It also features a 1/8" headphone output that allows you to monitor your audio input.
- Lock mode prevents accidental changes to settings
- Auto setup and environment scan for fast setup
- Powered by 2 AA size dry batteries or optional BP4000 battery pack
- Designed specifically for use with the WMS4500 Series transmitters from AKG
- The Squelch feature has a variable threshold and allows you to mute the audio when the signal falls below that threshold
Key Features
- Band 8 / 570 to 600 MHz
- 18 Channels for Max Bandwidth
- 2x AA Battery Powered
- 12 Hour Average Battery Life
| Product Name | AKG PR4500 Band 8 Reference Wireless Camera Receiver |
|---|---|
| Weight | 0.15 Kg |
| Power Supply (PoE) | 2x AA size dry batteries Optional BP4000 battery pack |
| Frequency | Band 8: 570 to 600 MHz |
| Audio Outputs | 1x 2.5 mm TS jack Rated output level: 316 mV rms (-10 dBV) Output impedance: 600 Ω Total harmonic distortion: < 0.5% Signal to noise ratio: 100 dB(A) |
| Dimensions | 3 x 4 x 1" (70 x 90 x 25 mm) |
| Manufacturer | AKG |
| Color | Black |
| Country of Origin | United States |
