AKG PZM10 Hemispherical Flush Mount Boundary Layer Microphone White

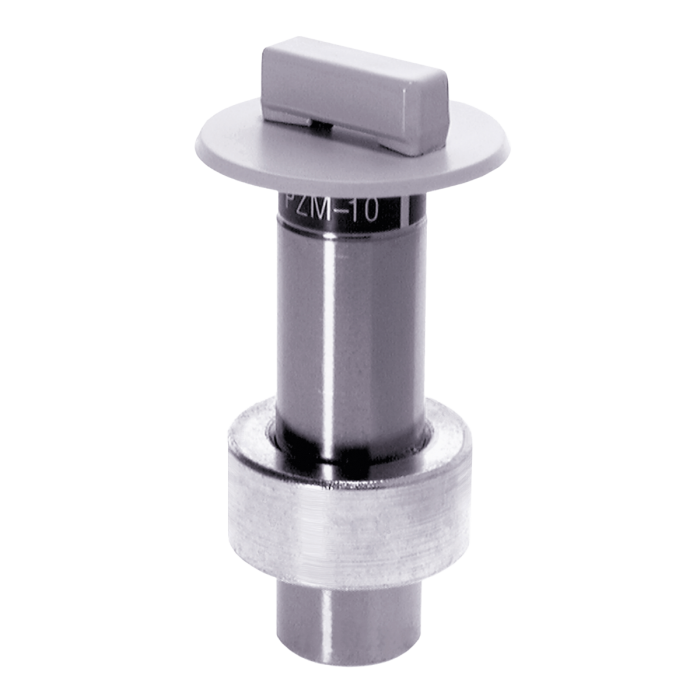

AKG PZM10 Hemispherical Flush Mount Boundary Layer Microphone White. The white AKG PZM10 is a hemispherical flush-mount boundary layer microphone designed for security, surveillance, and concealed operation. The inconspicuous low-profile design features a tubular steel housing that mounts in a 25/32" diameter hole, making it ideal for installation in a ceiling panel, wall, or table.
PRODUCT OVERVIEW
The white AKG PZM10 is a hemispherical flush-mount boundary layer microphone designed for security, surveillance, and concealed operation. The inconspicuous low-profile design features a tubular steel housing that mounts in a 25/32" diameter hole, making it ideal for installation in a ceiling panel, wall, or table.
The electret condenser capsule offers a hemispherical polar pattern and a wide frequency response of 80 Hz to 20 kHz. It outputs a balanced mic-level signal to an XLR 3-pin male connector and is powered via 12 to 48 VDC phantom power.
Inconspicuous Design
The inconspicuous design features a miniature, concealed profile for surveillance and hidden operation.
Optimized Frequency Response
The PZM10 features an optimized frequency response, ideal for capturing vocals while minimizing low-frequency ambient noise.
Inconspicuous assistant
The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.
Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.
- Electret Condenser Capsule
- Hemispherical Polar Pattern
- 80 Hz to 20 kHz Frequency Response
- Balanced Mic-Level Output
| Product Name | AKG PZM10 Hemispherical Flush Mount Boundary Layer Microphone White |
|---|---|
| Weight | 0.07 Kg |
| Frequency Range (-10 dB) | 80 Hz to 20 kHz |
| Maximum SPL | 120 dB SPL (3% THD) |
| Impedance | 240 Ohms (Balanced) |
| Sensitivity (SPL / 1 W @ 1 m) | 2.5 mV/Pa (Open Circuit Voltage) -52 dBV/Pa (Open Circuit Voltage) |
| Max. Power Consumption | 400 µA |
| Dimensions | ø: 1.3 x L: 2.8" / ø: 3.2 x L: 7.2 cm |
| Manufacturer | AKG |
| Color | White |
| Country of Origin | United States |
