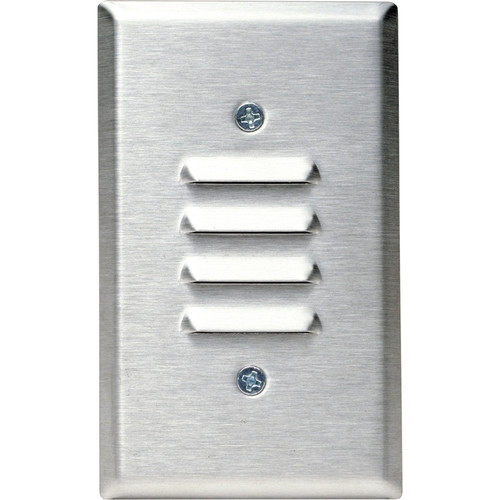

AKG PZM11 LL WR Weather Resistant Wall Plate Boundary Microphone
AKG PZM11 LL WR Weather Resistant Wall Plate Boundary Microphone. The PZM11 LL WR from AKG is a professional weather-resistant boundary layer microphone designed for fast-food restaurants, outdoor intercoms, tollbooths, SOS telephones, theme-park security and the like. A plastic membrane inside the microphone protects the mic capsule from water damage. The PZM11 LL WR will work during and after rainfall. If water freezes on the membrane, the mic's frequency response will change but will return to normal when the ice melts and the membrane dries.
PRODUCT OVERVIEW
The PZM11 LL WR from AKG is a professional weather-resistant boundary layer microphone designed for fast-food restaurants, outdoor intercoms, tollbooths, SOS telephones, theme-park security and the like. A plastic membrane inside the microphone protects the mic capsule from water damage. The PZM11 LL WR will work during and after rainfall. If water freezes on the membrane, the mic's frequency response will change but will return to normal when the ice melts and the membrane dries.
In the PZM11 LL WR, frequencies below the voice range are rolled off to reduce traffic rumble. The high-frequency response is boosted to help articulation. Because of its tailored response and construction, the PZM11 LL WR will pick up conversations or other desired sounds with enhanced clarity.
The PZM11 LL WR can be plugged directly into a VCR line input - no costly mic preamp is needed. Output via screw terminals can be balanced or unbalanced. Powering is by 12-24 VAC or VDC.
It can stand the rain!
The PZM11 LL WR is a professional weather-resistant boundary layer microphone designed for fast-food restaurants, outdoor intercoms, toll booths, SOS telephones, theme-park security and the like. A plastic membrane inside the microphone protects the mic capsule from water damage. The PZM11 LL WR will work during and after rainfall. If water freezes on the membrane, the mics frequency response will change but will return to normal when the ice melts and the membrane dries.
The PZM11 LL WR is powered by 12V - 24V DC, provides line-level output and can be plugged directly into a VCR line input without the need for a costly mic preamp.
| Product Name | AKG PZM11 LL WR Weather Resistant Wall Plate Boundary Microphone |
|---|---|
| Weight | 0.07 Kg |
| Frequency Range (-10 dB) | 80 Hz to 10 kHz |
| Maximum SPL | 100 dB SPL (3% THD, Max Gain) |
| Impedance | 1000 Ohms (Minimum, Recommended) |
| Sensitivity (SPL / 1 W @ 1 m) | 5 mV/Pa |
| Lengt | 2.76" / 70 mm |
| Dimensions | Box Dimensions (LxWxH) 5.8 x 3.8 x 2.7" |
| Manufacturer | AKG |
| Color | White |
| Country of Origin | United States |
