PRODUCT OVERVIEW

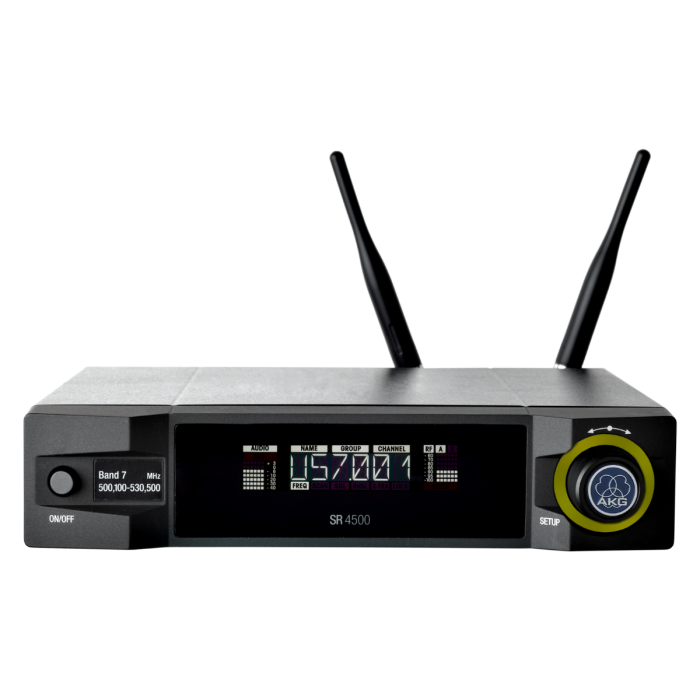

The AKG SR4500 BD2 receiver uses the Diversity system for preventing loss of communication between the transmitter and receiver, and has a robust shielding metal housing. Each receiver has the ability to retune within the UHF band with a width of 30 MHz.

The total number of operating frequencies that are available for tuning in each of the six available ranges is 1200. A preliminary test signal allows to obtain information on the status of the transmitter on the receiver’s display screen before it is fully activated (Mute switch position, battery charge level, frequency at which transmitter is configured).

It is possible to remotely control the AKG SR4500 BD2 receiver from a computer, which is especially true for a large complex of systems, and also provides a logical output for controlling external devices, such as an automatic mixer. Functions Auto Setup, Environment Scan and Rehearsal (function "rehearsal"). All information in the form of luminous numbers and symbols is reflected on the large display of the receiver or on the computer monitor, parameters are controlled and information is called up using the wheel - Jog wee.

Features

• Carrier frequency 650-680, 680-710, 720-750, 760-790, 790-820, 835-863 MHz
• Frequency band 35-20000 Hz
• Distortion <0.3%
• Signal to Noise Ratio> 120dB
• Receiver size 200 x 44 x 190mm
• Receiver Weight 972g
