Grab Allen & Heath Dante Wall Mount Expander with Up to 16 units can be added to an SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card at Best Prices by Worldwide Shipping!
Allen & Heath 16, 4 XLR I/O Dante Wall Mount Expander:

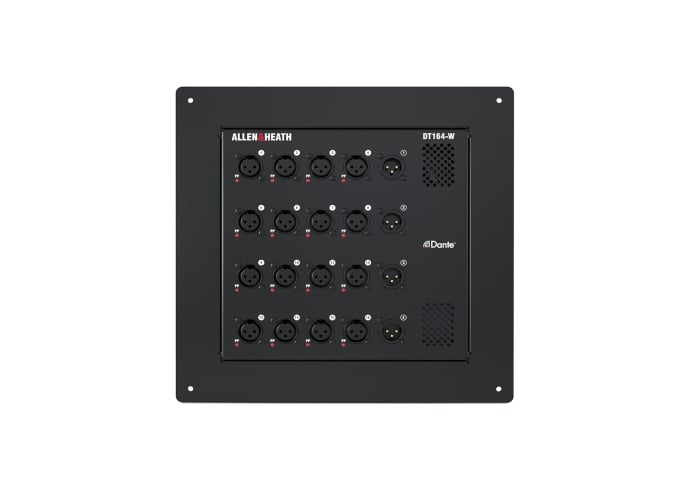

The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided. DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Up to 16 units can be added to an SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.
Features
- Dante audio expander, 96kHz / 48kHz
- Wall mount or dip trap installation
- 16 mic preamps on XLR with Phantom Power status LEDs
- 4 XLR Line Outs
- Primary and Secondary Dante ports with locking EtherCon
- Redundant or Switched mode
- Direct preamp control from dLive, Avantis and SQ
- 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
- DC power can be used as redundant power supply
- Can fit in a standard NEMA box (custom brackets required)
- Compatible with ACE Backstage 174SLBK stage pocket system
- AES67 compatible
- Dante Domain Manager ready
Product Name | Allen & Heath 16, 4 XLR I/O Dante Wall Mount Expander |
---|---|
Weight | 3.18 Kg |
Manufacturer | Allen & Heath |
Color | Black |
Country of Origin | United Kingdom |
Product Datasheet
-
