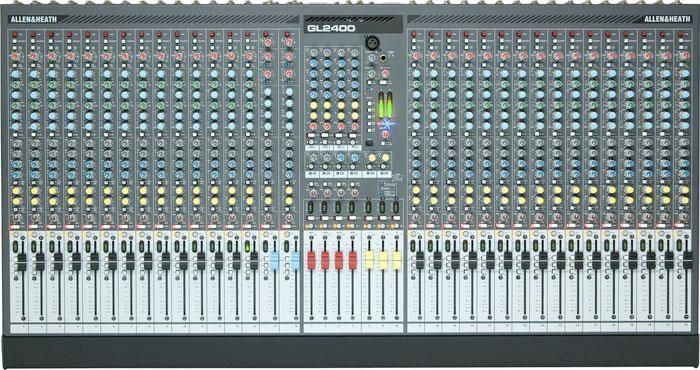

Allen & Heath 4 Bus Live Mixer:

Whether you're mixing FOH, monitors, or both, recording live or in the studio, installed in a busy conference center or house of worship, out on the road touring or earning its keep in rental stock, the new Allen & Heath GL2400 provides the perfect solution. This 4-bus, 6-aux console adds a host of new features including a 7 x 4 matrix with innovative mic crosspatching to create ambient enhanced additional mixes such as mono or stereo IEM and recording feeds.

FEATURE SUMMARY

• L/R and M main outputs
• Four audio groups with pan control
• Six auxiliary sends with per-channel pre/post fader switching
• Two stereo channels each with mic and dual stereo line inputs
• 7x4 matrix
• Proper dual functionality for FOH and/or monitor mixing
• M can be configured as L/R sum, wedge, or aux-fed sub or C master
• Recording capable with channel direct outputs
• Matrix external inputs with level trims and common input capability
• Stereo channel line inputs can be independently routed to L/R
• Stereo channel mic input breakpoints for cross patching into matrix
• Responsive 4-band, 2-sweep EQ
• 100Hz channel highpass filters
• Individual phantom power and polarity switching
• Dedicated Channel, Master and stereo Monitor meters
• Internal jumper plugs for pre/post-EQ aux, direct out and other options
• Mutes, meters and AFL on all fader masters
• Assignable talkback
• 1kHz oscillator and pink noise generator
• 2-track monitoring and replay to L/R
• Headphones and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp +34dBu maximum input capability for mic or line
• Ultra low-noise mix head amp design
• Internal power supply with MPS12 backup supply input (16 to 32 models)
• 100mm dust protected faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Solid copper bus bar grounding
• Sys-Link V2 console linking option
• 4-pin XLR lamp sockets
