PRODUCT OVERVIEW

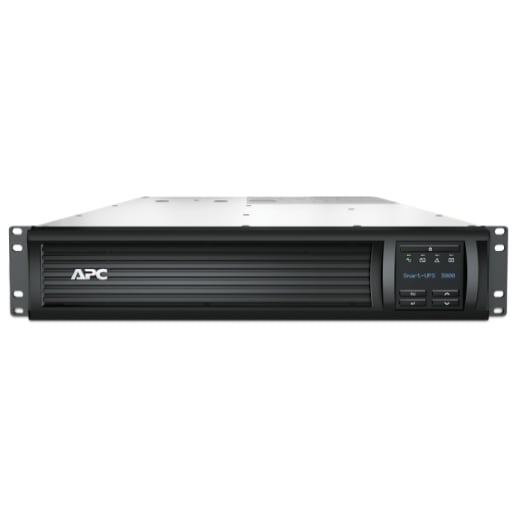

APC Smart-UPS 3000VA Rack Mount, LCD 3000VA, 230V with SmartConnect Port Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable

Smart-UPS Features & Benefits

Availability

Automatic self-test

• Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic restart of loads after UPS shutdown

• Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging

• Prolongs battery life by regulating the charge voltage according to battery temperature.

Intelligent battery management

• Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

• Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

• Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification

• Warns when a battery is not available to provide backup power.

Manageability

LED status indicators

• Quickly understand unit and power status with visual indicators.

Network manageable

• Provides remote power management of the UPS over the network.

Audible alarms

• Provides notification of changing utility power and UPS conditions.

Serial connectivity

• Provides management of the UPS via a serial port.

USB connectivity

• Provides management of the UPS via a USB port (not available on all models).

Marketing features

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Smarter productivity with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
