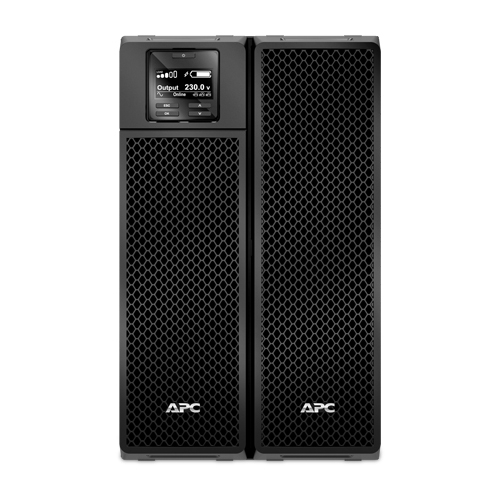

APC SRT10KXLI 10000VA 230V Smart UPS
PRODUCT OVERVIEW
APC Smart-UPS SRT 10000VA 230V
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Temperature probe, USB cable, Warranty card, Web/SNMP management card
- Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green modePatent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.
Smart-UPS On-Line Features & Benefits
Adaptability
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Availability
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime
Allows additional run time to be quickly added as needed.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
| Product Name | APC SRT10KXLI 10000VA 230V Smart UPS |
|---|---|
| Output Power | 10.0kVA/ 10000VA |
| Output Voltage | 230 Volts |
| Input Frequency | 40 - 70 Hz (auto sensing) |
| Input Voltage Range | 160 - 275 V |
| Interface Ports | DB-9 RS-232, RJ-45 Serial, Smartslot, USB |
| Control Panel | Multi-function LCD status and control console |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Recharge Time | 1.5 hour(s) |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Cord Length | - |
| Approvals | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Dimensions | 432 x 263 x 715 mm |
| Shipping Dimensions | 461 x 600 x 1000 mm |
| Weight | 50.72 Kg |
| Shipping Weight | 126.820 |
| Manufacturer | APC |
| Color | Black |
| Country of Origin | United Arab Emirates |
