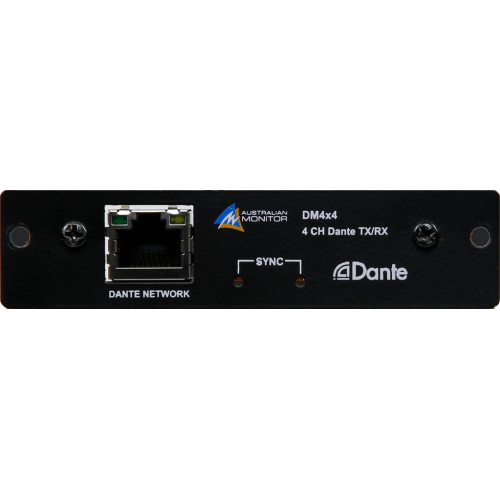

Australian Monitor DM4X4 Dante 4 Input & 4 Output Expansion Card

PRODUCT OVERVIEW

Dante^® expansion card for use with the IS series of power amplifiers.

Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel. In addition, 4 Dante^® outputs channels are available to route any analogue inputs back on to the network.

Note: Due to restrictions in the Dante solution, the DM4x4 only supports 2 transmit and 2 receive flows (A flow can contain up to 4 audio channels). This means that the Dante audio connected must be in one of the following modes.

• device containing 4 audio streams
• 2 devices containing 2 audio streams

It does not support 4 devices containing 1 audio stream (This would need 4 flows).

This restriction applies to both receive and transmit directions.
