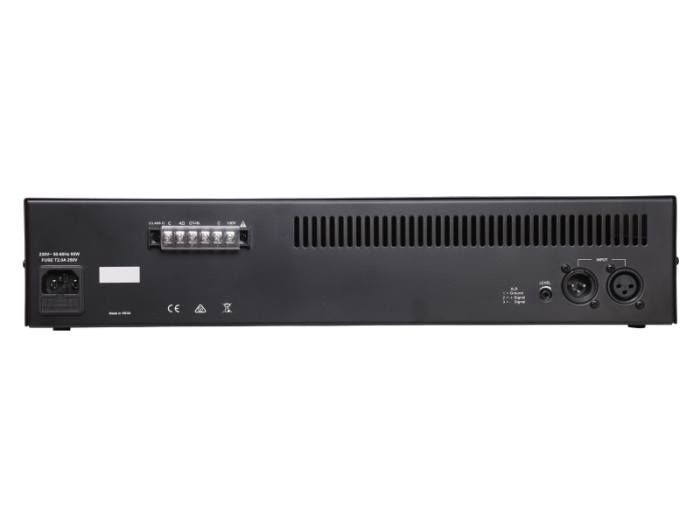

Australian Monitor ES120P 120W Power Amplifier
The ES120P power amplifier delivers 120 watts at 100 volt or 4 ohm in a 2 RU package. The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.
PRODUCT OVERVIEW
The ES120P power amplifier delivers 120 watts at 100 volt or 4 ohm in a 2 RU package. The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.
POWER AMPLIFIER
The ES amplifiers all feature a rugged power amplifier with short-circuit, over-load, and thermal protection. Build for reliable, long term performance at a great price point.
POWER AMPLIFIER OUTPUT MODE
The ES power amplifiers all offer 100V and 4Ω output options so you can choose the required output for your speaker application.
XLR INPUT AND THROUGH OUTPUT
The ES power amplifiers feature a female XLR input as well as a male XLR through output. This allows easy cable daisy chaining of multiple amplifiers from a single audio source without cable splitting.
An input level attenuator is also provided to trim the input audio signal to the desired level for the amplifier.
- 120W power amplifier
- 4 ohm and 100 volt output options
- Rear panel volume control
- Balanced input and thru out
- Fan cooled
- 2 RU
| Product Name | Australian Monitor ES120P 120W Power Amplifier |
|---|---|
| Weight | 6.80 Kg |
| Sensitivity (SPL / 1 W @ 1 m) | 160mVrms |
| Frequency Response | 55Hz - 20kHz |
| Max. Power Consumption | 120W |
| Dimensions | 483mm x 293mm x 88mm |
| Manufacturer | Australian Monitor |
| Color | Black |
| Country of Origin | United Arab Emirates |
