PRODUCT OVERVIEW

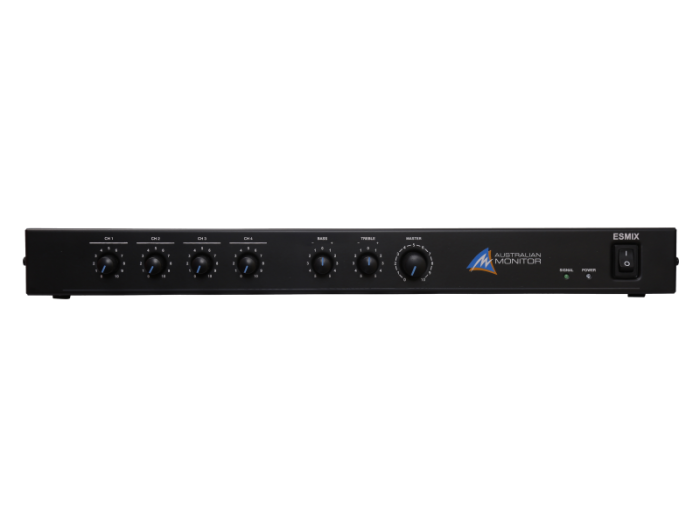

The Australian Monitor ESMIX is the latest evolution of our Essentials series of Mixers, now featuring 2 channels of priority VOX muting an integrated tone generator with a modern look and finish.

The mixer maintains the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs and 12V phantom power.

The ESMIX offers the latest features to meet projects requiring the most cost-effective solutions.

4 INPUT CHANNELS

The ESMIX and Mixer Amplifiers all feature four inputs channels.

Each channel can be used as a Microphone input(XLR) or as a Line Level Input(RCA)

LINE AND RECORD OUTPUTS

The ESMIX and ES Mixer Amplifiers feature both a Line and Record Output.
These outputs can be used to link additional power amplifiers to increase the required output channels or total power requirements.

PRIORITY MUTING & PHANTOM POWER

The ES series offer two channels of priority muting control.
Using selectable DIP switches on the rear of the product, different configuration modes can be selected as shown in the table.
Use the priority muting to perform talk over functions which mute background music inputs when audio is detected on a priority input channel.

Phantom power is also provided which, when activated, provides 12 volts to condenser microphones on the XLR inputs.

EMBEDDED TONE GENERATOR

The ES120, ES250 and ESMIX products embed a tone generator which can play 5 internal tones.
A rear panel connector allows the tones to be played by connecting any of the pins to the ground terminal.
A tone volume control is also provided to change the tone to the desired level.

When a tone is playing Channels 2, 3 and 4 are muted. Channel 1 is not muted to allow, if required, microphone messaging over the tone.
