PRODUCT OVERVIEW

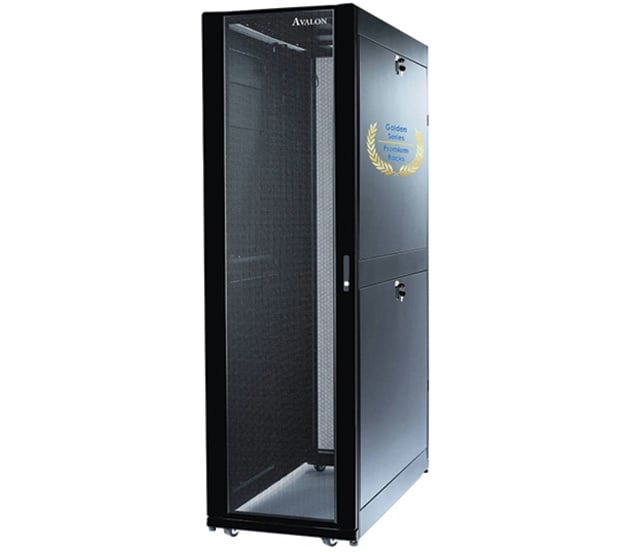

Avalon Cabinets are Feature-rich rack enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow. These racks are multi-functional rack enclosures designed to meet current IT market trends and applications ranging from high-density computing and networking to broadcast and audio-video. With an efficient cooling fan, the power distribution, cable management, the Golden series rack enclosure provides a reliable rack-mounting environment for mission-critical equipment.

Compatibility

• Integrated with Avalon products - Avalon cooling, power
• distribution, and cable management products work seamlessly
  with these enclosures to provide a complete infrastructure support
  system.
• Avalon Rack Systems Compatible – Compatible with a variety of
  Avalon rack accessory products
• Optimized for high capacity cable management systems - Vendorneutral EIA-310 19in Rack Mounting Compatibility Guaranteed
• Vendor-neutral mounting for guaranteed compatibility with all
  EIA-310 compliant 19" equipment.

Convenience

• Perforated front door with hex design perforated front and rear
  doors provide ample ventilation for servers and networking
  equipment.
• Cable access openings with pre-installed brushes - Large cable
  access slots in the roof provide access for overhead cable egress.
  The bottom design allows for unobstructed cable access through
  a raised floor. Roof includes openings with brush Strips.
• Quick release doors - Front door can be moved to the opposite
  side or interchanged with rear doors.
• Half-height side panels and option with brush strips for pass-through
• Half-height quick release side panels reduce size and weight for
  easy handling and access to equipment. Side panels are lockable
  utilizing a single key with the doors.
• Equipment mounting rails include zero U mounting holes beside the
  EIA 19" mounting space that allow the installation of Data
  Distribution easily

Safety

• Designed for enhanced Rigidity - A proven frame design, heavy-gauge mounting rails, and heavy-duty casters
  provide for 1300 kg static (levelling feet +castors) load ratings.
• Integrated electrical grounding - The roof, side panels and front and rear doors are grounded to the frame of
  the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Cabinet Features

• 19” Mounting Angles
• Front Perforated  Double door with Lock and handle
• Both the doors can be mounted to be opened from  either side
• Four Removable side Panels (Half-height side panels with individual lock)
• Adjustable Jacking Feet
• Four Fans fitted in a Fan Tray with Cable for connection
• Earthing Screw
• Two way vertical Cable Managers
