PRODUCT OVERVIEW

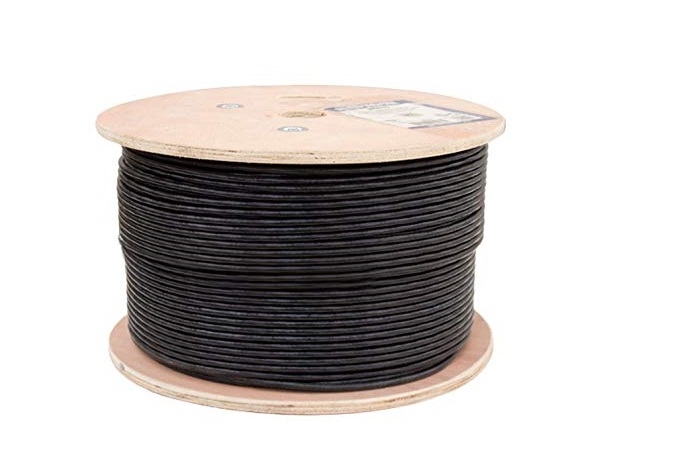

SF/UTP-CAT6-4P-PVC+PE-AM40 have been designed for outdoor applications and are suitable for outdoor duct installations. The cable supports 1G Ethernet networking, fully supporting the more demanding office communications including voice, data, VoIP, Video Conferencing, Security, IP based cameras and other demanding real time applications.

The cable covers the category 6 requirements for Shielded foil twisted pair cables of 100 Ω and is characterized up to 250 MHz suitable for transmitting data over local area networks (LANs). The Conductor material is SOLID-Bare Copper. The insulation material is HDPE with dia of 1.12±0.05 mm.

Inner Screening Material is of Mylar+AL/Mylar and has drain wire. The Outer Screening Material is of Aluminum-magnesium

Alloy 0.12mm with Coverage ≥40%. The Inner Sheath is PVC with thickness of 0.60±0.1 mm and external O.D of 9.1±0.5 mm, the material is LDPE (complies RoHS) and the colour is black.

Feature & Benefits

• Category 6/Class E compliant
• SF/UTP-CAT6-4P-PVC+PE-AM40
• PE jacket material
• Reliable performance
• IEC 61156-5, EN 50288-6-1
• Super-standard performance margin
• Compliant to ISO/IEC 11801 Ed 2.2, ANSI/TIA- 568-C.2, EN 50173-1

APPLICATIONS

• Outdoor Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps 1.2G ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL
• HVAC alarm systems and other signaling

STANDARDS

• ANSI/TIA-568-C.2,  ANSI/TIA-568.2-D
• ISO/IEC 11801:2011 (Ed 2.2) Class E
• IEC 61156-5
• CENELEC EN 50173-1:2011
• EN50288-6-1
