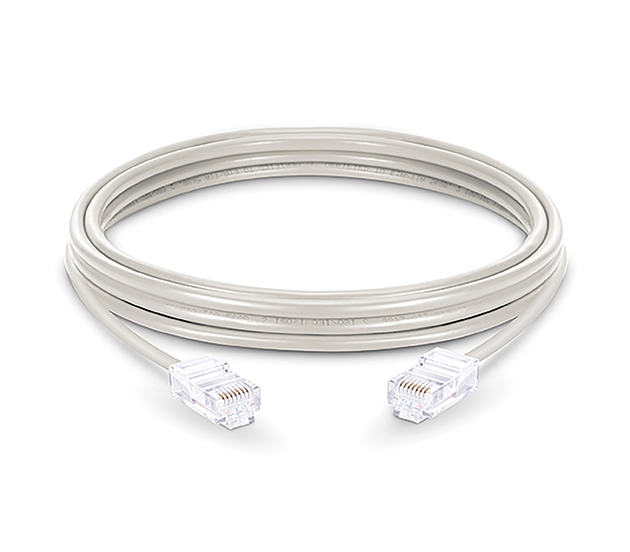

Avalon Cat 6 UTP LSHZ Patch Cord 2 mtr (Grey)

PRODUCT DESCRIPTION:

Avalon Patch Cords have been designed for high-speed data transmission over local area Networks (LANs) and for Gigabit Ethernet 1000Mbps applications. These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards. Avalon cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal- to -noise ratio, providing better reliability for current applications and higher data rates for future applications. These Patch Cords comprise of a flexible patch cable and terminating with two modular plugs along with molded boots.

Applications:

• Patch Work and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 Base (IEEE 802.3)
• 155Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL

Specifications:

• Insulation Material: HDPE
• Conductor and Metal: 7 Bare Copper Wires, 24 AWG
• Jacket: PVC, UL94V-0
• Plugs: RJ-45 8P8C
• Contact: Gold plated: 30U”
• Contact Blade: Phosphor Bronze
• Moulded Boot: Fire Retardant PVC
• Fire Resistant: CMG Specifications

Standards:

• ISO/IEC11801:2011(Ed. 2.2)
• ANSI/TIA/EIA-568-C.2
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• IEC61935-2:2010(Ed.3.0)
• ROHS Compliant
