Product Discreption:

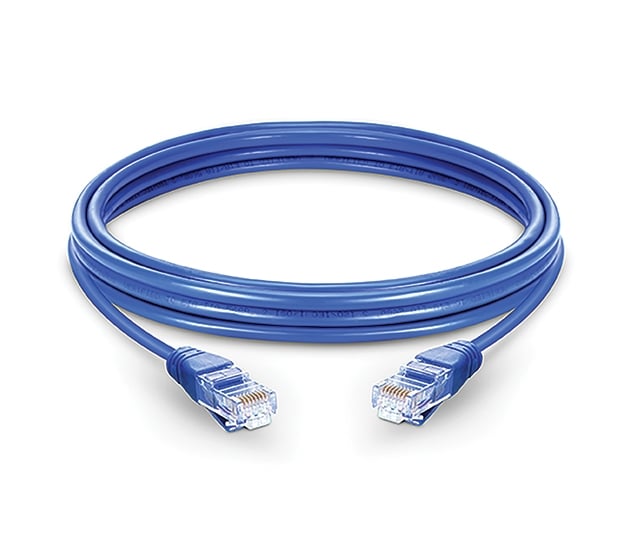

Avalon Patch Cords have been designed for high speed data transmission over local area Networks(LANs) and for Gigabit Ethernet 1000Mbps applications. These cables exceed performance requirementsspecified by the TIA/EIA-568B.2 /TIA/EIA-568C.2 and IEC60603-7-4 Standards. Avalon cables are ideal forsimple, cost-effective and high-speed transmission performance. They support a higher signal- to -noise
ratio, providing better reliability for current applications and higher data rates for future applications. These Patch Cords comprise of a flexible patch cable and terminating with two modular plugs along with molded boots.

Applications:

•  Patch Work and Work Area
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 Base (IEEE 802.3)
• 155Mbps ATM
• 100 Mbps TP-PMD
• Analogue Voice, ISDN, ADSL

Specifications:

•  Insulation Material: HDPE
•  Conductor and Metal: 7 Bare Copper Wires, 24 AWG
•  Jacket: PVC, UL94V-0
•  Plugs: RJ-45 8P8C
•  Contact : Gold plated: 30µ
•  Contact blade: Phosphor Bronze
• Molded Boot: Fire Retardant PVC
•  Fire Resistant: CMG Specifications

Standards:

•  ISO/IEC11801:2011(Ed. 2.2)
•  ANSI/TIA/EIA-568-C.2
•  EN 50173-1:2011
•  EN 50173-2:2007 including amendment A1:2010
•  IEC61935-2:2010 (Ed.3.0)
•  ROHS Compliant
