PRODUCT OVERVIEW

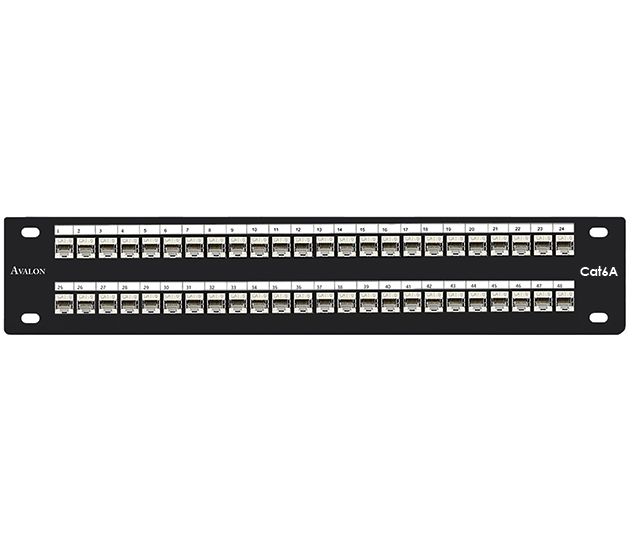

Avalon CAT.6A 48 Port Patch Panels are the industry’s high-quality Panels that support the latest technologies and diverse applications. These panels combine strength and durability with a sleek look, making them ideal for all kinds of environments. These comply with ANSI/TIA/EIA 568C.2 10G, ISO/IEC 11801 and EN 50173-1 Class E specifications. The complete module complies with EU ROHS Directive. The construction is in standard 19” size, suits for all 19” rack installations.

Features:

• High density 48 port 1U patch panel
• STP Snap-in Type
• Six Port RJ45 modules applied
• Suitable for Cat.6A STP Keystone Jacks
• Integral plastic cable management
• Modern design and simplicity of mounting
• Rear cover to improve shielding and protect Terminals.
• LSA style termination blocks
• Easy field label systems
• Port identification

Specifications:

• Thickness of cold-rolled steel:1.5mm
• Shielded Cover: 50U Nickel plated over phosphor bronze
• Operating Temperature Range: -60 to 80
• IDC Accept: 22-26 AWG
• Wire Scheme: T568A/B
• Insulation Resistance: 500Ω
• Current Rating: 1.5Amps
• DC Resistance: 0.1-ohm MAX
• Voltage: 150 VAC MAX
• Plug Retention Force: 89N
• Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
• IDC Contact: Phosphor Bronze
• Specifically Design: With Two PCB Panel & Toolless
• Insertion life:≥1000 mating cycles
• Plug /Jack Contact Force: 100g min
• Humidity: 5 to 93%( non-condensing)

Applications:

• 1000 Base- TX Gigabit Ethernet
• 1000 Base- T Gigabit Ethernet
• 100 Base –TX Fast Ethernet
• 10 Base-T Ethernet
• Voice, Video and other applications
• Standard Size for mounting in 19” Racks and Cabinets
