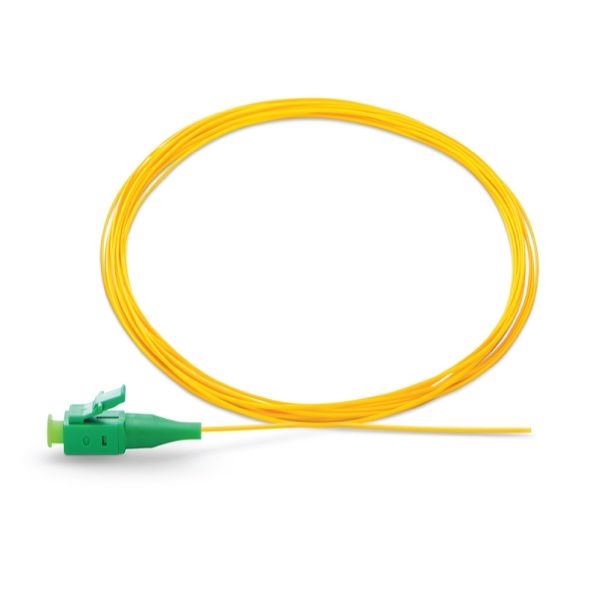

Avalon LC APC 1 Meter Singlemode Pigtail
SKU
ANPT-SM-LC-APC-1MT
$7
$7
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Avalon angle polished (APC) pigtails are made by polishing the fiber either at 8 or 9 degrees angle with a radius of curvature between 5mm and 12mm. This fiber has a typical insertion loss of 0.2 dB per connection and APC polished end faces at 65dB minimum return loss.
PRODUCT OVERVIEW
Avalon angle polished (APC) pigtails are made by polishing the fiber either at 8 or 9 degrees angle with a radius of curvature between 5mm and 12mm. This fiber has a typical insertion loss of 0.2 dB per connection and APC polished end faces at 65dB minimum return loss. It also passed the international standard of all TIA/EIA-568-B.3, ISO/IEC 11801 OSI performances and complies the UL 1666 flame rating.
Features
- Pass all ISO/IEC 11801 IS1 performance requirements
- Jacketed cable compliant with UL 1666 flame rating
- 100% factory inspected end face geometry in
Compliance with TELCODIA GR-326-Core - Typical Insertion loss per connection is 0.2dB
- APC Polished end faces 65db minimum return loss
Applications
- Telecommunication Networks
- LAN, WAN, CATV
- FTTX,FTTH
- Fiber Communication Systems Data Processing
Networks, Industrial, Mechanical and Military
| Product Name | Avalon LC APC 1 Meter Singlemode Pigtail |
|---|---|
| Weight | 0.453592 |
| Manufacturer | Avalon |
| Color | Yellow |
| Country of Origin | China |
