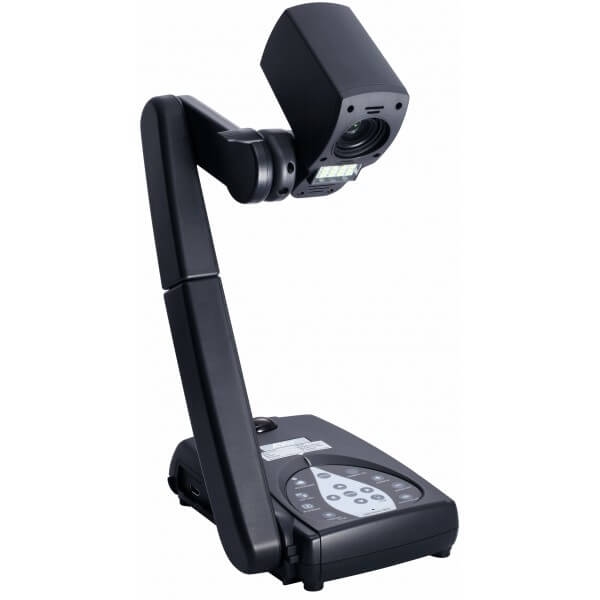

AVerVision M70 Document Camera
Actual Stock Can Be Confirmed After Placing the Order.
SKU
av-m70
AED 3,016
AED 2,872
Pay 4 interest-free payments of AED 421.00.Learn more
AVerVision M70 Document Camera
“More tools than Inspector Gadget™”
- 5MPs, 192X zoom and HDMI
- Mechanical arm
- Annotate without a computer
- Audio/video recording to USB
- AVer Academy Suite
- America's Best Doc Cam Warranty program.
| Image | |
| Sensor | 1/3.2” CMOS |
| Pixel Count | 5 megapixels |
| Effective Pixel | 2592 H x 1944 V |
| Frame Rate | 30 fps (max.) |
| White Balance | Auto / Manual |
| Exposure | Auto / Manual |
| Image Mode | Sharp / Graphics / Motion / Microscope / Macro / Infinite |
| Effect | Color / B/W / Negative / Mirror / Rotate / Freeze |
| RGB Output | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| HDMI Output | HD 1080p; HD 720p |
| Composite Output | 720x480 (NTSC) |
| Optics | |
| Focus | Auto / Manual |
| Shooting Area | Max. 16.54” x 12.4” (420mm x 315mm) |
| Zooming | 12X Optical + 16X Digital Zoom (Total = 192X) |
| Function | |
| Image Effect | Color / B&W / Negative / Mirror / Reverse / Freeze |
| White balance/exposure/night view | Auto / Manual |
| Picture-in-picture | Yes |
| Split Screen | Yes |
| Presentation Tools | Spotlight (Yes), Visor (Yes) |
| Capture Mode | Single / Continuous |
| Remote Control | Yes |
| Image Storage | 240 Frames(XGA) ; 80 Frames(5M Pixel) |
| Onboard AV Recording | Yes, SD/SDHC/USB |
| Onboard Annotation | Yes, works with any HID device (eg. Mouse, AP20T Interactive Pen) |
| Compatibility | |
| Operating Systems | Windows XP SP3 (32-bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit) Mac OS X 10.5.8 or above (Intel based) |
| AVer Software | AVer Academy Suite (Sphere, PowerPoint Plug-in, Flash-Plug-in), A+ 1.7, AVerVision 4 |
| Interactive Whiteboard Compatibility | Yes with AVerVision Flash Plug-in |
| MS PowerPoint | Yes with PowerPoint Plug-in (Windows only, MS PPT 2007 or above) |
| Power | |
| Power Source | DC 12V, 2A, 100-240V, 50-60Hz |
| Consumption | 16.8 Watts (lamp off); 18 Watts (lamp on) |
| Lighting | |
| Lamp Type | LED light |
Input/Output Connections |
|
| RGB Input | 15-Pins D-sub (VGA) |
| RGB Output | 15-Pins D-sub (VGA) |
| HDMI Output | HDMI |
| CVBS/RS-232 | Mini-DIN Jack (use CVBS/RS-232 Adapter cable) |
| Composite Video | RCA Jack |
| USB | Mini-USB (Connect to PC) Type-A (Connect to USB Flash Drive, AP20 Interactive Pen) |
| SD | SD/SDHC (Up to 32GB) |
| DC 12V Input | Power Jack |
| MIC Input | 3.5mm jack, pink |
| Speaker Output | 3.5mm jack, green |
Dimension |
|
| Operating | 17.79” x 7.16” x 19.84” 452mm x 182mm x 504mm (+/-2mm include rubber foot) |
| Folded | 14.45” x 7.16” x 2.48” 367mm x 182mm x 63mm (+/-2mm include rubber foot) |
| Weight | 4.63 lbs (2.1kg) |
External Storage |
|
| Secure Digital (SDHC) | 1GB ~ 32GB (FAT32) |
| USB Flash Drive | 2GB ~ 64GB (FAT32) |
Package Contents |
|
| M70 | |
| RS-232/CVBS Cable | |
| 3' USB Cable (Mini type) | |
| RGB Cable | |
| Power Adapter | |
| Software CD | |
| User Manual CD | |
| Carrying Bag | |
| Remote Control (including batteries) | |
| Anti-glare Sheet | |
| Warranty Card | |
| Quick Guide | |
Optional Accessories |
|
| Microscope Adapter | Part number: VISIFSEMA |
| Light Box | Part number: VISSPC3LB |
| Anti-Glare sheet | Part number: PANTIGLA1 (A5 size 8.26” x 5.84”) |
| AP20T Interactive Pen | Part number: PEN2TEAPK |
| Product Name | AVerVision M70 Document Camera |
|---|---|
| Sensor | 1/3.2” CMOS |
| Optical Zoom | 12X Optical |
| Digital Zoom | 16X Digital Zoom |
| Output Resolution | RGB - 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768, HDMI - HD 1080p; HD 720p |
| Shooting Area | Max. 16.54” x 12.4” (420mm x 315mm) |
| Lamp | LED light |
| VGA Input | - |
| VGA Output | - |
| HDMI Output | HD 1080p; HD 720p |
| Built-in Microphone | - |
| Audio Recording | - |
| Memory Card Slot | SD/SDHC (Up to 32GB) |
| Built in Memory | 240 Frames(XGA) ; 80 Frames(5M Pixel) |
| Focus | Auto / Manual |
| Image Rotation | 5MP |
| Software | AVer Academy Suite (Sphere, PowerPoint Plug-in, Flash-Plug-in), A+ 1.7, AVerVision 4 |
| Weight | 0.95 Kg |
| Manufacturer | AVerVision |
