Behringer ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface
The ULTRAGAIN DIGITAL ADA8200 from Behringer is an analog to digital, and digital-to-analog converter that provides 8 analog inputs and outputs and 8 digital ADAT inputs and outputs.
PRODUCT OVERVIEW

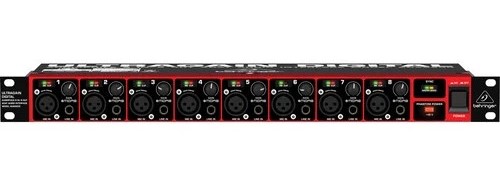

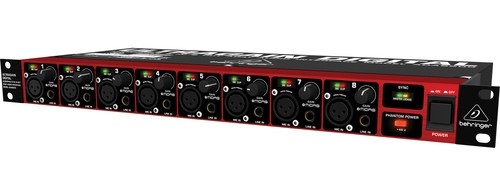

The ULTRAGAIN DIGITAL ADA8200 from Behringer is an analog-to-digital and digital-to-analog converter that provides 8 analog inputs and outputs and 8 digital ADAT inputs and outputs.
Each analog input features a MIDAS mic preamplifier and XLR and TRS jacks for connecting mics, keyboards, and more. Each analog output features an XLR jack for sending signals to analog mixing consoles, headphone amps, and other devices. Housed in a single-space 19" rack-mount enclosure, this unit can be used in your home or project studio to add I/O to your rig for recording and mixing by connecting into your ADAT-equipped audio interface.
- ✔️ High-quality 8-channel 24-bit A/D and D/A converter for your digital recording/mixing environment
- ✔️ 8 MIDAS-designed microphone preamps with phantom power
- ✔️ Cirrus Logic 24-bit converters
- ✔️ Processes 48 and 44.1 kHz sample rates
- ✔️ Optical ADAT I/O interface for compatibility
- ✔️ All microphone/line inputs are routed to the ADAT output
- ✔️ ADAT input routed to all line outputs
- ✔️ External sample rate synchronization via word clock or ADAT input
- ✔️ Switching power supply
| Product Name | Behringer ADA8200 Audiophile 8 In/8 Out ADAT Audio Interface |
|---|---|
| Weight | 2.086525 |
| Frequency Response | 10 Hz to 24 kHz (at 48 kHz) |
| Power Capacity | +48 V, Selectable On/Off |
| Impedance | 20 Kilohms (Balanced) |
| Dimensions | 19 x 8.5 x 1.75" / 482.6 x 217 x 44.5 mm |
| Manufacturer | Behringer |
| Color | Black |
| Country of Origin | United States |
