PRODUCT OVERVIEW

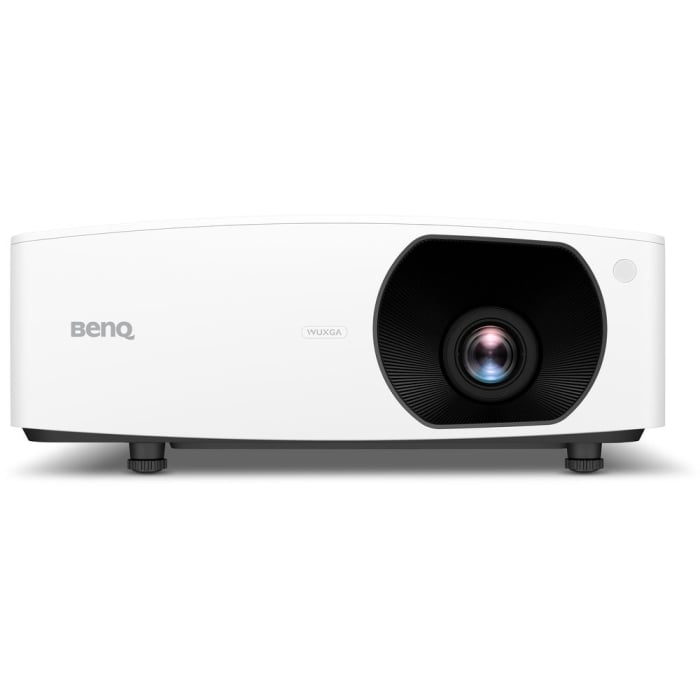

Project high-resolution images and presentations in nearly any environment with the BenQ LU710 4000-Lumen WUXGA Laser DLP Projector. Its 4000 lumens of brightness overcomes ambient light in many situations, while its dynamic contrast ratio helps keep images and text clear and distinct. Its 1.13 to 1.46:1 throw ratio and 1.3x zoom provide a range of installation options.

The LU710 has component video, composite video, VGA, and two HDMI inputs to support both analog and digital video sources. Its VGA output allows you to daisy-chain multiple projectors or displays to show the same video source, and the 1/8" audio output to connect external speakers. It is controllable via Ethernet or RS-232 and includes a remote control.

BlueCore Laser Technology:

Enhanced Brightness:

The virtually zero-deviation alignment of the BlueCore laser diodes helps boost luminous flux into the light tunnel to produce up to 4000 lumens of brightness.

Secondary Yellow-Infused Color Wheel:

Dual synchronized BlueCore color wheels use an additive yellow segment, simulating the RGBY spectrum for augmented chromatic performance that achieves up to 92% of Rec.709 color coverage.

Hermetically Sealed DLP Chip:

The DLP chip is hermetically sealed to resist heat to help it provide up to 20,000 hours of life without degradation.

Infographic Mode for Enhanced Presentation Quality:

Infographic mode is designed to showcase text and graphics in detail, and Video Mode helps provide augmented color performance during video or image presentations.

LumiExpert Ambient Light Detector for Eye Comfort:

The 4000-lumen brightness level of the LU710 allows presentations to be viewable in comfortably lit medium-sized conference rooms supporting 20 to 40 people. LumiExpert technology is engineered to automatically detect the ambient light conditions of a meeting room and adjust the projector's brightness to enhance clarity and comfort.

Instant On/Off and Signal Power On:

The signal power on feature turns the projector on automatically once a signal is detected over VGA or HDMI.

High Dynamic Contrast Ratio:

The LU710 is designed to create clear images with a high 3,000,000:1 contrast ratio for deep blacks, rich colors, and fine details. The laser light source also allows for spontaneous response, requiring no wait to turn on or resume from image blanking.

Engineered for Enhanced Reliability:

Long-Lasting Laser Light Source:

BlueCore laser technology is designed to deliver up to 20,000 hours of consistent image quality, resisting color decay over time, making the LU710 suitable for blending multiple projectors together into one image without worrying about varying brightness levels.

DLP Technology:

The BlueCore line of projectors use a single-chip DLP designed to produce true-to-life colors and legible text with virtually no blurring, shadowing, or interference patterns. The DLP chip can last up to 20,000 hours without degradation.

Dustproofing for Severe Conditions:

The LU710 is designed with sealed laser modules and enclosed light engines to help protect the laser light source and phosphor wheel. The design has passed the IP5X dust chamber test standard.

Installation Flexibility:

360° Rotation Projection:

The LU710 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or for angled signage to fulfill presentation in corporate venues of nearly any size.

1.3x Zoom:

With 1.3x zoom, corporations can replace outdated projectors by making use of their existing ceiling mounts to project large images in restricted spaces. The 1.3x zoom allows the LU710 to be mounted anywhere from 9 to 13' from the screen and project images up to 100".

Image Calibration for Projection Alignment:

The LU710 is equipped with a two-dimensional keystone correction range of ±30° to counteract the trapezoid effect, which occurs when a projector is installed off-center. You can also use Corner Fit to adjust each corner independently to achieve your desired image geometry.

Integrated Network Control and Management System Compatibility:

Designed for Comprehensive Control System Compatibility:

The LU710 is compatible with a number of projector control systems, including Crestron, AMX, and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, the LU710 also supports RS-232 for reliable long-distance installations up to 49'.

Centralized Control with BenQ MDA Software:

BenQ Multiple Display Administrator (MDA) software provides centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations. Also, up to 253 projectors on the same LAN can be updated at once within one interface.

Optional Wireless Connectivity:

Compatible with the InstaShow for Wireless Presentations:

The separately available InstaShow is a zero-software solution that allows multiple presenters to connect from any compatible device. InstaShow requires no driver installation and is compatible with virtually any OS or hardware platform, making it easy for presenters to wirelessly take turns delivering presentations.

QCast Mirror-Compatible:

To satisfy BYOD needs, the optional QCast Mirror Wi-Fi adapter lets meeting participants share Full HD content wirelessly from any compatible mobile device or laptop.
