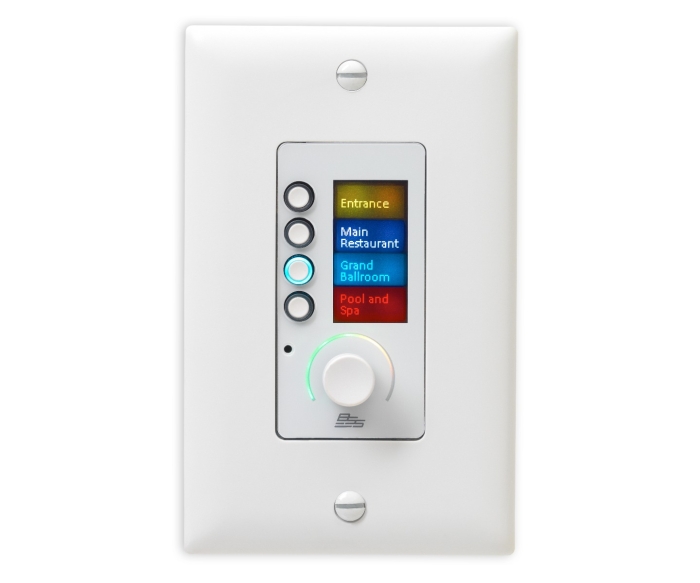

BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control White

Actual Stock Can Be Confirmed After Placing the Order.
SKU
BSSEC4BV-WHT-M-EU
AED 1,454 AED 1,385
Price Match Request
WhatsApp Facebook
Pay 4 interest-free payments of AED 421.00.Learn more
The EC-4BV contains one push/rotary encoder, one encoder ring, four buttons, and one LCD screen. The buttons, encoder ring, and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity.

PRODUCT OVERVIEW

The Soundweb Contrio EC-4BV is an Ethernet wall controller for use in Harman HiQnet systems. The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers.
The EC-4BV is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-4BV contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-4BV is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.

The EC-4BV contains one push/rotary encoder, one encoder ring, four buttons, and one LCD screen. The buttons, encoder ring, and LCD screen are multi-color backlit, capable of eight different colors with adjustable intensity.

The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).

The four buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.

The LCD screen has a screen resolution of 64x128 pixels, and can display custom text.

The EC-4BV supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-4BV can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.

The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked via a four-digit PIN entry on the buttons.

The EC-4BV supports multiple modes of operation. This allows the push/rotary encoder and encoder ring to be reassigned dynamically to different parameters based on which buttons are selected.

Features

  • Ethernet Wall Controller
  • Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
  • Available in Black or White
  • Available in US Decora or EU Version
  • Single-Gang Size
  • PoE (Power Over Ethernet)
  • Configured within Audio Architect via Drag-and-Drop
  • 1 Programmable Push/Rotary Encoder
  • 1 Programmable Encoder Ring (Multicolored)
  • 4 Programmable Buttons (Multicolored)
  • 1 Programmable 64x128 Pixel LCD (Multicolored)
  • Sleep Function
  • Security: Remote Lock/Unlock and Local Unlock via PIN Entry
  • Multiple Modes of Operation

More Information
Product Name BSS EC-4BV Ethernet Controller with 4 Buttons and Volume Control White
Weight 1.00 Kg
Manufacturer BSS
Color White
Country of Origin United States
