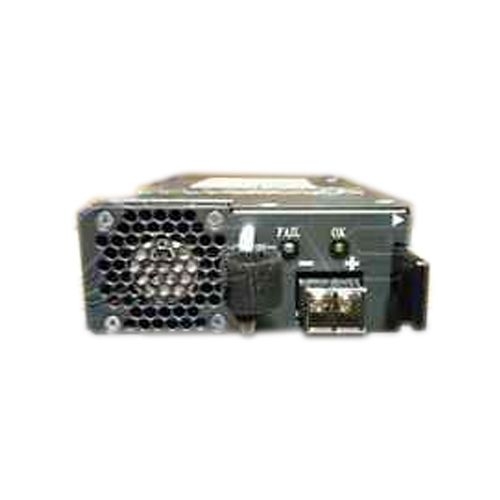

Cisco ASR-1001-X-PWR-DC Power Supply Router
The fans in the power supply module of the Cisco ASR 1001-X Router are used for cooling the power supply module itself while system-level cooling is provided by four fans within the chassis.
PRODUCT OVERVIEW
The Cisco ASR 1001-X Router supports AC and DC power supply options. The modular chassis configurations support the installation of two power supplies for redundancy. When an external power supply fails or is removed, the other power supply provides power requirements for the chassis. This allows you to hot-swap the power supply without impacting the functionality of the router.
Power Supplies for the Cisco ASR 1001-X Router
Each Cisco ASR 1001-X Router power supply provides 250 W of output power. The power supplies are used in a 1 + 1 redundant configuration. There is no input switch on the faceplate of the power supplies. A power supply is switched from Standby to On by way of a system chassis STANDBY/ON switch. When facing the rear of the chassis, power supply slot 0 (PS0) is to the left (next to the power supply standby switch) and power supply slot 1(PS1) is to the right.
FEATURES
- Power supply - hot-plug / redundant - plug-in module
- -40 -72 V Input Voltage
- 242 Watt Power Capacity
- Designed for Cisco ASR 1001-X Router
| Product Name | Cisco ASR-1001-X-PWR-DC Power Supply Router |
|---|---|
| Weight | 0.453592 |
| Power Supply (PoE) | Input: 48V/60V DC 14A, Output 12V DC at 33A & 5V DC at 3A |
| Manufacturer | Cisco |
| Color | Silver |
| Country of Origin | United Arab Emirates |
