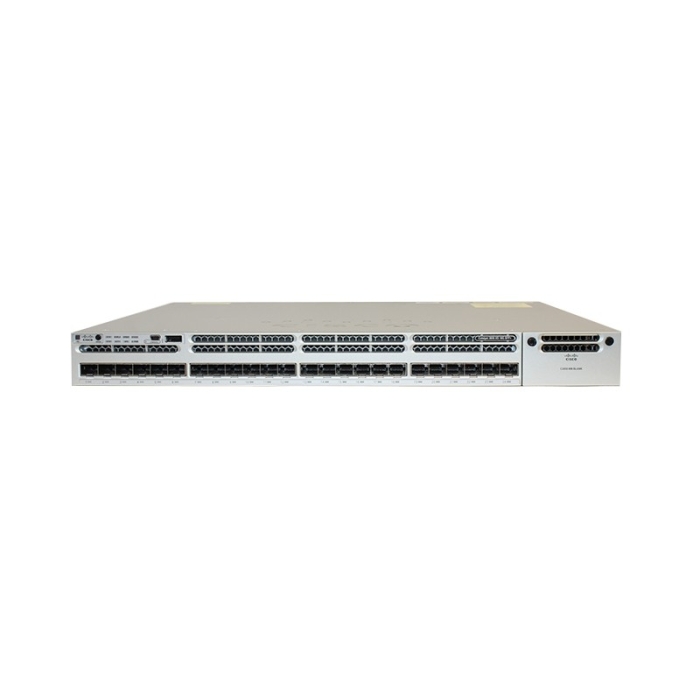

Cisco Catalyst 3850 Stackable 24 ports IP Base SFP+ Switches

Cisco Catalyst 3850 Stackable 24 ports IP Base SFP+ Switches:

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired plus wireless policy enforcement, application visibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480.

Specifications:

Number of AP per switch/stack
100

Number of wireless clients per switch/stack
2000

Total number of WLANs per switch
64

Wireless bandwidth per switch
up to 20Gbps

Supported Aironet AP series
3600, 3500, 2600, 1600, 1260, 1140, 1040

Console ports
USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)
1 network module slot and 1 power redundant slot

Network Modules Selection

• C3850-NM-4-1G: 4 x 1G uplinks network module
• C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

• STACK-T1-50CM StackWise stacking cable with a 0.5 m length
• STACK-T1-1M StackWise stacking cable with a 1.0 m length
• STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

• CAB-SPWR-30CM stack power cable with a 30CM length
• CAB-SPWR-150CM stack power cable with a 150CM length

Power supply
PWR-C1-715WAC

Power Device
Power supply - redundant - plug-in module

Power Redundancy
optional
