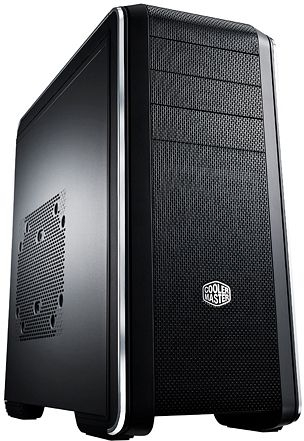

Cooler Master Case CM693
Actual Stock Can Be Confirmed After Placing the Order.
SKU
CMS-693-KKN1
AED 725
AED 690
Pay 4 interest-free payments of AED 421.00.Learn more
CM 690 III - The Newest Upgrade in the Popular CM 690 Series Is Finally Here.
- Full mesh on the front panel and top with large vents on the side panel for superior cooling
- 3 designated places for radiators: 240mm: top, front; 120mm: rear
- Supports up to three 200mm large fans for extreme airflow with support for up to 9 total fans (KKN1: 9 fans, KWN1: 7 fans, WWN1-V2: 7 fans)
- New ODD tool-less design “EZ tray” for quick installation
- Supports up to 10 SSDs (4 in the removable HDD/SSD combo cage, 1 behind the M/B tray) and 7 HDDs with HDD/SSD combo trays
- Dual Super Speed USB 3.0
- High-end component support – long graphics cards up to 423mm and tall CPU coolers up to 171mm
- Multiple removable dust filters (top, front, PSU) for improved system maintenance
- Top compartment with cover to place personal belongings.
| Product Name | Cooler Master Case CM693 |
|---|---|
| Case Type | ATX |
| Material | Polymer, mesh front bezel |
| Motherboards | ATX |
| Cooling System | Top: 120/140mm fan x 2, or 200mm fan x 1 (optional) Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional) Rear: 120mm fan x 1 (installed) Side: 120mm fan x 2 or 180/200mm fan x 1(optional) - for CMS-693-KKN1 (standard version) o |
| Drive Bays | 5.25" Drive Bays:3 (exposed). 3.5" Drive Bays:7 (hidden). 2.5" Drive Bays:10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom). |
| Expansion Slots | 8 |
| I/O Ports | USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio) |
| Dimensions | 230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch |
| Weight | 4.04 Kg |
| Manufacturer | Cooler Master |
| Color | Black |
