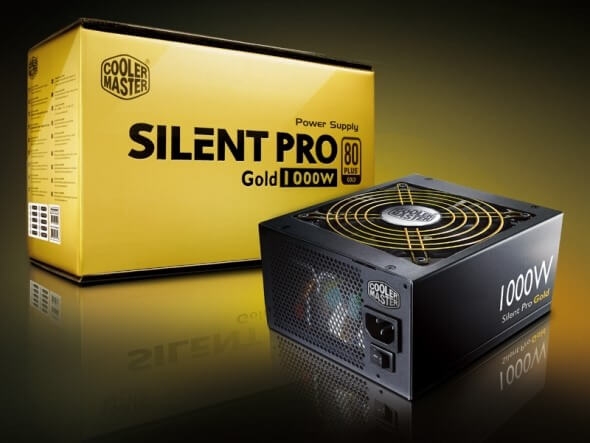

Cooler Master Silent Pro Gold 1000W Power Supply Unit
Actual Stock Can Be Confirmed After Placing the Order.
SKU
MRSA0080GAD3UK
Pay 4 interest-free payments of AED 421.00.Learn more
Ranging from the ever-efficient 600W all the way up to the 1200W power supply, the Silent Pro Gold will satisfy the energy cravings of any system.
- Hybrid Transformer™:
Specially design transformer to improve thermal and efficiency.
Patent design transformer mount with heat sink, the size was reduced by up to 25% than the traditional transformer providing lesser energy consumption, while conducting the heat for better overall efficiency
- HTT™ - Heat Transfer technology: Patent design “L” shaped heat sink layout. This technology helps to guide the air flow along the heat sink to improve the air circulation for maximum performance.
- Hyper Path™:
Patent design hyper link between IC and the relative components. Patent energy conversion design path provides super efficient connection from the transformer to components. The signal can be transfer directly without any energy loss.
- Single 12 V Power Rail
Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading.
- Double-Layer EMI Filter
Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.
- Intel Compliant
ATX12V v 2.3 and EPS version 2.91 compliant.
- Intelligent Fan Speed Control
Speed control makes the 135 mm fan adept for any user’s circumstances and need.
- Active PFC+ PWM Combo Controller
Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.
- Multiple Protection Design
Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP) and Over Current Protection (OCP).
- Efficient Transformer
- Adeptly holding power for minimal loss in the 5V standby voltage so the system is promptly up and ready from power on or sleep modes
- Highly efficient design on par with 80Plus Gold requirements (90% typical).
- And More
- Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
- Simple cable management utilizing flat modular cables for increased airflow.
- High reliability with an MBTF of at least 100,000 hours of use.
- NVIDIA SLI-Ready Certified guarantees enough ample power and up-to date connectors for SLI graphics cards.
- Five Year Warranty.
Detailed Specifications:
| Model | RS-A00-80GA-D3 |
| Type | Intel Form Factor ATX 12V V2.3 SSI Form Factor EPS 12V V2.92 |
| Dimension (W x L x H) | 150 X 180 X 86 mm 5.9 x 7.09 x 3.4 inch |
| Input Voltage | 90-264Vac (Auto Range) |
| Input Current | 11 - 5.5 A |
| Input Frequency Range | 47-63Hz |
| PFC | Active PFC (0.99) |
| Power Good Signal | 100~500ms |
| Hold Up Time | >17ms |
| Efficiency | 90% typical |
| MTBF | >100,000 hours |
| Protection | OVP / UVP / OCP / OPP / OTP / SCP |
| Output Capacity | 1000W |
| Max. Output Capacity | 1200W |
| Operation Temperature | 0~40°C (Nominal Input Voltage) |
| Regulatory | CE / FCC / UL / TUV / C-Tick / GOST / BSMI / CCC / KCC |
| Fan | 135mm Ultra Silent Fan |
| Certifications | SLI / CrossFire / 80 Plus Gold |
| Connector | M/B 20 + 4 pins x 1 CPU 4 + 4 pins x 2 PCI-e 6+2 pins x 4 / PCI-e 6 pins x 4 (One PCI-e 6+2 pins connector extends to one PCI-e 6 pins connector) SATA x 9 / Peripheral 4 pins x 4 Floppy 4 pins x 1 |
| Product Name | Cooler Master Silent Pro Gold 1000W Power Supply Unit |
|---|---|
| PSU Type | ATX |
| Wattage | 1000W |
| Dimensions | 150 X 180 X 86 mm |
| Manufacturer | Cooler Master |
| Color | Black |
