The Crown NCDI2X12BL-U-EU 2-Channel Amplifier delivers 1,200 W per channel at 4/8 Ω with 70V/100V support, combining powerful performance with exceptional efficiency. Designed with Crown’s DriveCore technology, it offers flexible low-Z/high-Z operation in a compact, lightweight 2U rack-mountable chassis, ideal for professional installations and commercial audio systems.

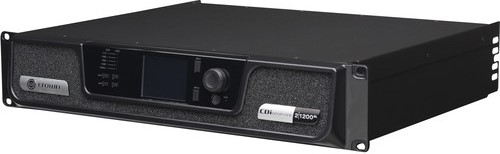

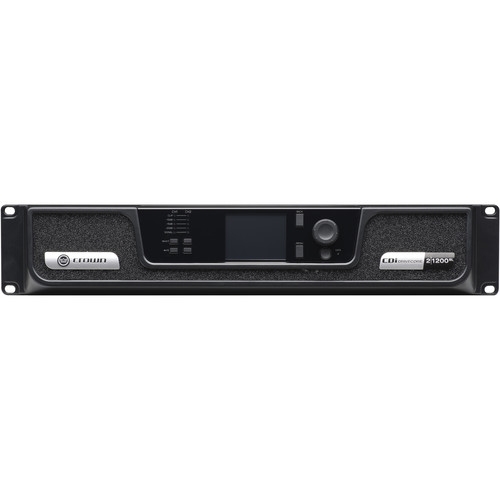

Crown NCDI2X12BL-U-EU 70/100V, 4/8 Ohm 2 Channel Amplifier
SKU
NCDI2X12BL-U-EU
$4,023
$3,831
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Key Features of the Crown NCDI2X12BL-U-EU
-
➤ Powerful Output: 1,200 W per channel at 4/8 Ω
-
➤ Advanced DSP: 32-bit processing with EQ
-
➤ Flexible Configuration: Operates in both low-Z and high-Z modes.
-
➤ Superior Audio Quality: Low distortion, wide frequency response
-
➤ Compact & Efficient: Lightweight 2U rack design with energy-saving DriveCore tech.
PRODUCT OVERVIEW
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance, rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200BL offers streamlined functionality to work in almost any large-sized installation, such as cinema, houses of worship, hotels, cruise lines, and more.
|
|
 |
Designed for ease-of-use in a variety of applications, the 2|1200BL is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The 2|1200BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS.
The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier. Input Impedance (nominally balanced, nominally unbalanced)20 kΩ balanced, 10 kΩ unblancedDimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)19 x 3.5 x 14.71Weight17.2 lbs (7.8 kg)Power Supply Connector"15A IEC connector, 100 – 240V.
| Product Name | Crown NCDI2X12BL-U-EU 70/100V, 4/8 Ohm 2 Channel Amplifier |
|---|---|
| Weight | 7.801789 |
| Configuration | 2 Channels |
| Frequency Response | +/-0.25dB |
| Impedance | 20 kΩ balanced, 10 kΩ unblanced |
| Signal-to-Noise Ratio | > 104dB |
| Sensitivity | 0.7V RMS (for full rated power at 8 ohms) |
| Crosstalk | > 80dB |
| Damping Factor | > 1000 |
| Dimensions | 19 x 3.5 x 14.71 |
| Manufacturer | Crown |
| Color | Black |
| Country of Origin | United Arab Emirates |
Write Your Own Review
Product Datasheet
