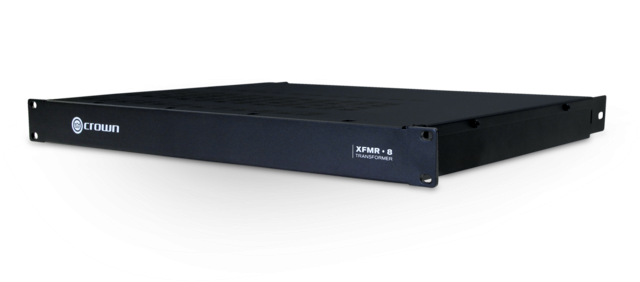

The Crown XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.
PRODUCT OVERVIEW
The Crown XFMR-4 and XFMR-8 are rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.
The fault signal can also be passed to TMS (Theater Management System), so the cinema manager can check the audio system working status without leaving his office. All necessary controls for daily operation of the CXM2000 are easily accessible on the front panel.
This device will significantly improve the speaker audio performance and offer peace of mind in the operation of a theater system. Crown CXM2000, Crown cinema amplifiers and JBL cinema speakers constitute the Harman total solution for cinema owners who share the same goal of introducing stable and high-quality movie-watching experience with HARMAN.
Product Name | Crown XFMR8 Input 32Vrms-125W Eight-Channel Transformer |
---|---|
Weight | 10.70 Kg |
Frequency Response | +/-1.0dB (at 70Hz to 15 kHz) |
Max. Power Consumption | 32Vrms/125W |
Dimensions | 483 x 44 x 397 |
Manufacturer | Crown |
Color | Black |
Country of Origin | United Arab Emirates |
