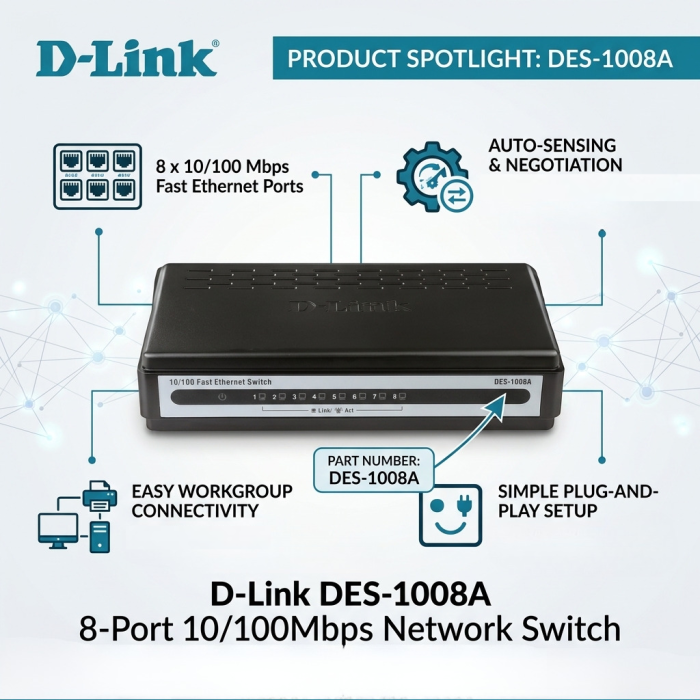

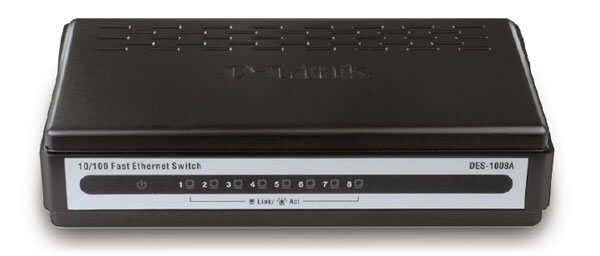

Key Features
Inexpensive Fast Ethernet solution for

Home/SOHO
+ 8 10/100 Mbps Fast Ethernet ports
+ Auto MDI/MDIX crossover for all ports
+ Store-and-forward switching scheme
+ Full/half-duplex for Ethernet/Fast

Ethernet speeds
+ IEEE 802.3x Flow Control
+ Plug-and-play installation
+ RoHS compliant

SWITCHING FABRIC
1.6 Gbps switching fabric

Standards
+ IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
+ IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
+ ANSI/IEEE 802.3 NWay auto-negotiation
+ IEEE 802.3x flow control

Protocol
CSMA/CD

Data Transfer Rates
Ethernet:
+ 10 Mbps (half duplex)
+ 20 Mbps (full duplex)
Fast Ethernet:
+ 100 Mbps (half duplex)
+ 200 Mbps (full duplex)

Topology
Star

Media Interfa ce Exchange
Auto MDI/MDIX adjustment for all ports

Network Cables
10BASE-T:
+ UTP CAT 3/4/5/5e (100 m max.)
+ EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
+ UTP CAT 5/5e (100 m max.)
+ EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators
+ Per port: Link/Activity
+ Per device: Power

Transmission Method
Store-and-forward

MAC Address Table
1K entries per device

MAC Address Learning
Automatic update

Packet Filtering/Forwarding Rates
+ Ethernet: 14,880 pps per port
+ Fast Ethernet: 148,800 pps per port

RAM Buffer
57 KBytes per device

Physical & Enviromental

DC Input
External 5V/1A power adapter

Power Consumption
Power On (Standby):
+ DC input: 0.3 watts
+ AC input: 0.5 watts
Maximum:
+ DC input: 1.6 watts
+ AC input: 2.5 watts

Heat Dissipa tion
+ Power On (Standby): AC input: 1.706 BTU/h
+ Maximum: AC input: 8.53 BTU/h

Operating Temperature
0 to 40 ˚C (32 to 104 ˚F)

STORAGE TEMPERATURE
-10 to 70 ˚C (14 to 158 ˚F)

OPERATING HUMIDITY
10% to 90% RH non-condensing

Storage Humidity
5% to 90% RH non-condensing

Dimensions (W x D x H)
128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)

Certifications
+ FCC Class B
+ ICES-003 Class B
+ CE Class B
+ C-Tick Class B
+ cUL
+ LVD
