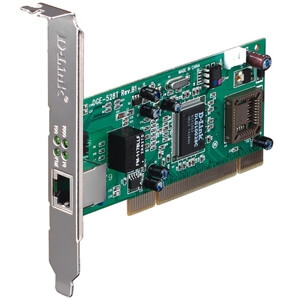

D-Link DGE-528T 32 BIT 10/100/1000BASE-T PCI Adapter
- Copper Gigabit connection for PC
- 10/100/1000Mbps auto-sensing speeds
- 2000Mbps Gigabit full duplex support
- 32-bit 33/66MHz clock speed PCI Bus Master operation
- Built-in FIFO (8K/64K) buffer to reduce overhead of memory transfers
- Supports auto MDI/MDIX and 802.3x Flow Control Supports ACPI 2.0 WOL power management and 802.1Q VLAN Tagging
- PCI 2.1, 2.2 plug-and-play
|
Standards |
IEEE 802.3 10BASE-T Ethernet |
|
IEEE 802.3u 100BASE-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
|
|
ANSI/IEEE 802.3 NWay auto-negotiation |
|
|
PCI local bus 2.1, 2.2 specifications |
|
|
IEEE 802.3x Flow Control |
|
|
IEEE 802.1Q VLAN tagging |
|
|
Protocol |
CSMA/CD |
|
Data Transfer Rates |
Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) |
|
Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) |
|
|
Gigabit Ethernet:2000Mbps (full duplex) |
|
|
Network Cables |
10BASE-T: UTP Cat. 3, 4, 5 (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) |
|
100BASE-TX, 1000BASE-T: UTP Cat. 5 (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) |
|
|
Flow Control |
IEEE 802.3x flow control per for full duplex |
|
Back pressure in half duplex |
|
|
Full/half Duplex |
Full duplex only (1000Mbps) |
|
Full/half duplex (10/100Mbps) |
|
|
Diagnostic LED Report |
1000/100/10Mbps |
|
Full duplex |
|
|
System Setup |
|
|
IRQ |
Allocated by system |
|
I/O Address |
Allocated by system |
|
Operating Temperature |
0° to 50° C |
|
Storage Temperature |
10° to 70° C |
|
Operating Humidity |
10% to 90% RH |
|
Storage Humidity |
5% to 90% RG |
|
Emission |
FCC Class B |
|
CE Class B |
|
|
VCCI Class B |
|
|
Network O.S. Support |
Microsoft Windows 98, NT 4.0, ME, 2000, XP |
|
Novell NetWare Server 5.x, 6.x |
|
|
Linux kernel 2.2.x, 2.4.x |
|
|
Macintosh OS X |
|
| Product Name | D-Link DGE-528T 32 BIT 10/100/1000BASE-T PCI Adapter |
|---|
