PRODUCT OVERVIEW

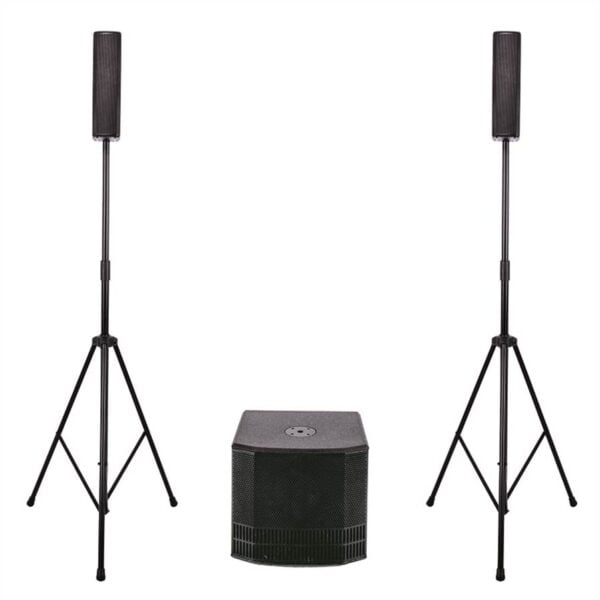

ES503 is a 1000W Power Amp Peak sound system composed by 2 slave 4x 3” full-range tops and 1 master 12” subwoofer. dBTechnologies’s components and design allow an amazing SPL/size ratio: 95x355x137 mm and 1.9 kg for the tops and 465x400x430mm 16,4 kg for the subwoofer for an overall 121 db SPL. The sub hosts a Digipro G3® amp module with auto-range PSU and a 3-channels mixer with Bluetooth connection.

A powerful DSP manages all function of the on-board digital mixer, making the ES503 a real gem in terms of sound performance and versatility. The internal design of the tops allows an asymmetrical vertical coverage (thanks to the Logarithmic Curved Column Array technology) and a unique “double ringed” phase plug widens the horizontal coverage and guarantees a perfect voice intelligibility. This allows ES503 to adapt to any situation, both with a seated or standing audience.
