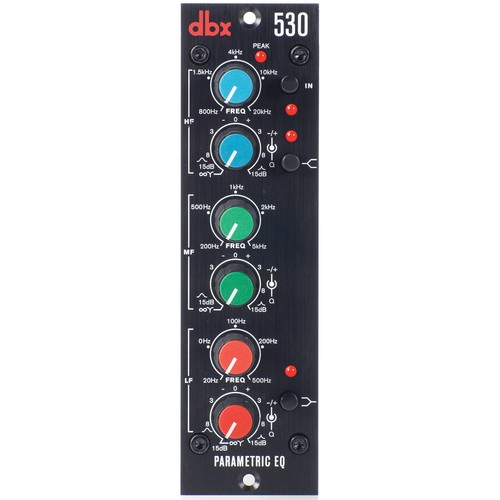

dbx 530 Parametric Equalizer 500 Series Module
PRODUCT OVERVIEW
The dbx 530 Parametric EQ offers a unique degree of equalization flexibility in the popular 500 Series format. Based upon the classic dbx 905, the dbx 530 is an uncompromising equalizer offering true, fully parametric operation of all three filter bands! dbx has a much-heralded history with modular processors dating back to our 900 Series, and the dbx 530 continues that tradition.
The dbx 530's overlapping bands each offer control of frequency bandwidth (Q) and up to 15dB of reciprocal cut or boost to provide exact, complimentary filter action for the most demanding of equalization needs. For problem situations requiring the removal of spurious signals, each of the bands can be independently switched into “infinite notch” mode without affecting the operation of others. In situations where a shelving equalizer will produce better results than a peaking one, the 530’s high and low bands can be independently switched from peaking to shelving operation. You can also make instant affected/bypassed comparisons using the 530's “On” switch.
Features
- Based on the classic dbx 905
- 3-band parametric EQ
- Selectable bell or shelf type filters on low and high frequency bands
- Adjustable Q on each band
| Product Name | dbx 530 Parametric Equalizer 500 Series Module |
|---|---|
| Weight | 0.77 Kg |
| Frequency Response | 20Hz - 20kHz, +0/-1dB; <10Hz - 30kHz, +0/-3dB |
| Power Capacity | 2.72 watts |
| Impedance | 40k Ohms balanced, 20k Ohms unbalanced |
| Dimensions | 5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm) |
| Manufacturer | dbx |
| Color | Blue Pearl Fade Metallic Finish |
| Country of Origin | United States |
