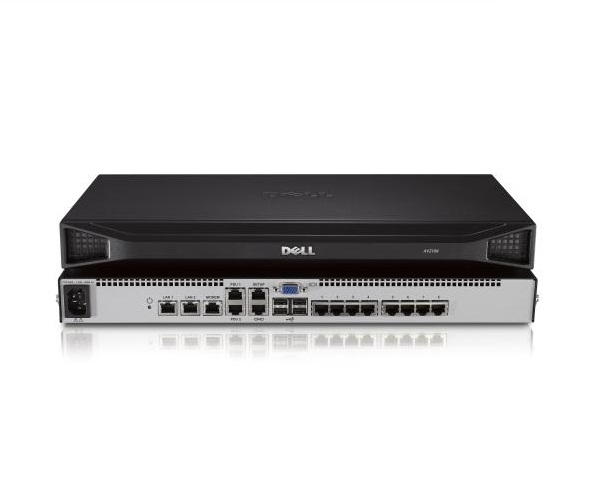

Dell DAV2216-G01 16-Port Analog Switch (Upgradeable to Digital KVM Switch With 2 Local Users, Single Power Supply)

The Dell Analog KVM switches, engineered by Avocent, are ideally suited for environments where remote access is not required but maximum security is essential. The Analog Server Console Switch is a perfect choice where real-time video and mouse response are required. Its responsiveness and readiness is not impacted by the need to digitize and transmit video frames, mouse and keystroke events. For maximum resolution requirements of a Network Operation Center, the Server Console switches can acquire resolutions of up to 1600×1200 and widescreen resolutions of up to 1680×1050.

The Analog KVM Server Console Switches provide flexibility to customers who may want to implement remote access in the future, but who are not ready to make that decision at the time of purchase. The digital capabilities of the Server Console Switch are ‘unlocked’ by plugging the Dell Remote Access Key into any one of the USB ports at the rear of the switch. With the Dell Remote Access Key installed, one authenticated digital user can remotely manage any one of the servers connected to the Server Console Switch over a TCP/IP network with support for DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions over a single IP address.
