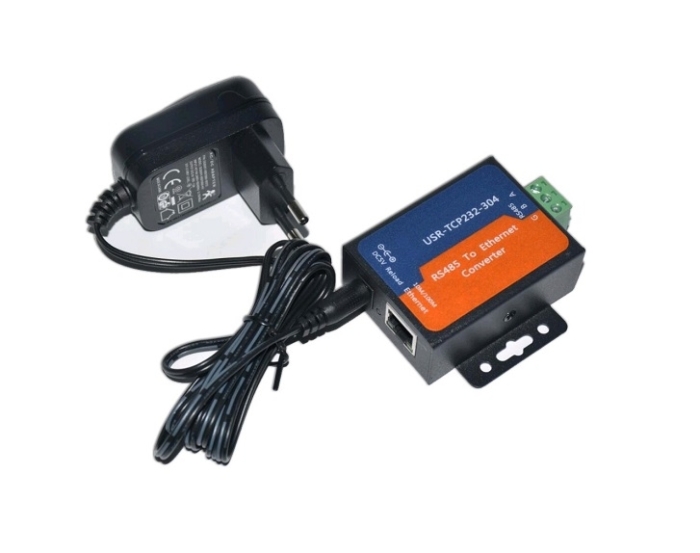

DM Serial Server, RS485 to LAN/ Ethernet Converter

Introduction of RS485 to Ethernet Converters

The RS485 to Ethernet Converters, used for data transparent transmission. USR-TCP232-304 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS485 and Ethernet. USR-TCP232-304 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.

Features of RS485 to Ethernet Converters

• Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Support DNS function
• Set parameters through webpage
• Upgrade firmware via network
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
• Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
• Support virtual serial port and provide corresponding software USR-VCOM

Restore factory default

• Across the gateway, switches, routers
• Can work in LAN, also can work in the Internet (external network)
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS

Support customization

• Application Field of RS485 to Ethernet Converters
• Industrial data transmission, industrial automation
• security and protection monitoring, public security
• Smart home, power control, environmental monitoring, intelligent agriculture
• Door check on work attendance system, POS system, rice selling system
• Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
