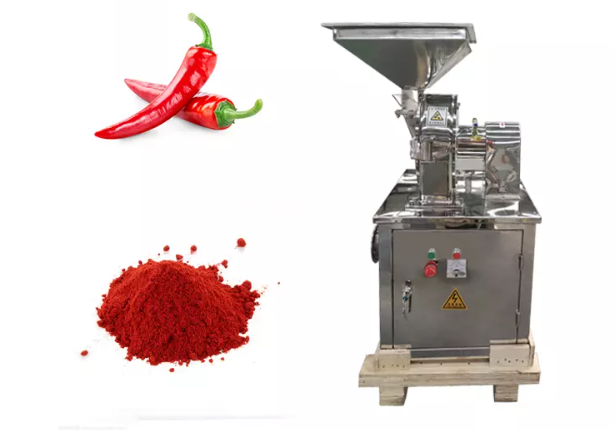

DMInteract DM-CWUP-30B Stainless Steel Pin Mill & Pulverizer Machine

Actual Stock Can Be Confirmed After Placing the Order.
SKU
DM-CWUP-30B
Price Match Request

Please call at +971-4-3360300, Email Us for Special Pricing!

The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.

PRODUCT OVERVIEW

The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials.

The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect.

The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.

Cutterhead high-speed rotation shear grinding.There is a screen outside the cutter head for filtration. After crushing, the powder passes through the screen and enters the discharge port.

Stainless steel screen:

Change the mesh size ,then change the powder size.The screen in the machine is available with the following apertures: 0.4, 0.6, 0.7, 0.8, 1, 1.5, 2, 2.5 mm. Pin mill for spicy, rice, seed, nuts crushing to 20-120 mesh.

Inspection machine

Every product is checked for normal operation before shipment. This is the guarantee we provide to our customers. The following scene is the scene of wheat bran test machine.

Main Features and application

  • The  Universal pulverizer may be widely applied in industries, such as medicine, chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
  • Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.
More Information
Product Name DMInteract DM-CWUP-30B Stainless Steel Pin Mill & Pulverizer Machine
Weight 290.00 Kg
Capacity 50(kg/h)
Speed 3800(r/min)
Feeding Size (mm) ≤10
Crushing Ability(kgs/hr): 12-160(mesh)
Crushing Motor 5.5(kw)
Body Material Stainless Steel 304
Product dimensions 910*750*1500(mm)
Input Voltage 220V.380V...
Frequency 380V;50hz; 3 phase
Manufacturer DMInteract
Color Silver
Country of Origin China
