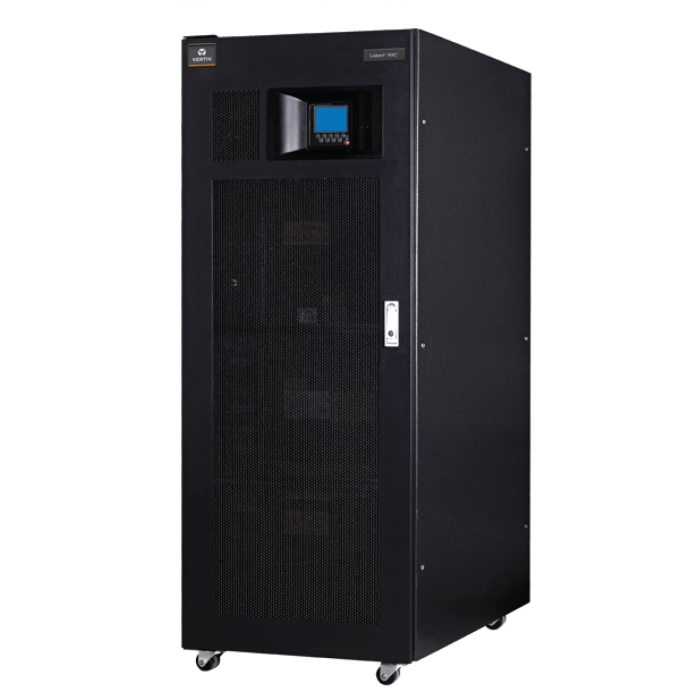

Emerson Liebert NXC 40KVA/36kW UPS

Actual Stock Can Be Confirmed After Placing the Order.
Price Match Request

Please call at +971-4-3360300 or Email Us for Best Prices!

Pay 4 interest-free payments of AED 421.00.Learn more

We provide installation services within UAE. Please contact +971-4-3060300 or Email us to book site survey.

Compact, Reliable Power

Liebert NXCTM offer reliable and flexible secure power in a fully integrated package solution. It comes complete with highly efficient transformer-free double conversion technology providing installation and running cost savings

Greatly reduces operational expenses

  • Virtually eliminates the need for an external battery cabinet and the costs associated with its installation
  • 11% more active power compared to a 0.8 PF UPS
  • Minimizes installation costs by enabling the use of smaller generators, cabling and circuit breakers.
  • Simplifies installation and reduces the need for external devices
  • Wide input parameter range ensure UPS always run on utility power results in prolong battery life
  • The voltage stress of the UPS semiconductors is reduced by half, thus ensuring prolonged life of the critical components
  • Easy replacement in the event of failure significantly reduces the Mean Time To Repair (MTTR)
  • Maximizes battery performance, life and reliability
  • Flexible input performance adjust with generator and eliminate generator over sizing
  • Allows the deployment of the cost effective common battery configuration
  • Ensure trouble free installation and commissioning
  • Progressively transfer load on generator

Makes Liebert NXC Compatible With:

Medical and other critical applications
Installation with two independent input sourcestd
Installation in distribution without neutral.

  • No need for external battery rack/cabinet
  • Adapt as per your electrical infrastructure
  • Allows a wider choice of battery and possible re-use of existing battery banks
  • Low Mean time to repair (MTTR)
  • Covers no extra space for service maintenance
  • Over 150 electrical parameter are monitored and updated in every 10ms through black box function
  • Allows for effective reduction of the battery re-charging time and increases its ability to manage long run times
  • Compatible with most of the advanced communication platform including SNMP, MODBUS etc
  • Intuitive LCD equipped with superior feature tracks multiple parameter simultaneously including efficiency graph etc
More Information
Product Name Emerson Liebert NXC 40KVA/36kW UPS
Output Voltage 380 Volts
Input Frequency HZ50 / HZ60
Input Voltage Range 229-477V(229-305 with 4 load derating)
Interface Ports LCD
Control Panel LCD display interface
Battery Type Integrated Battery
Recharge Time N/A
Audible Alarm N/A
Cord Length N/A
Approvals Protection level IEC (60529) IP20, General and safety requirements for UPS EN/IEC/AS 62040-1, EMC requirements for UPS EN/IEC/AS 62040-2, UPS classification according to IEC 62040-3 VFI-SS-111.
Dimensions 600 x 850 x 160
Shipping Dimensions N/A
Weight 95.25 Kg
Shipping Weight N/A
Manufacturer Emerson
Color Black
