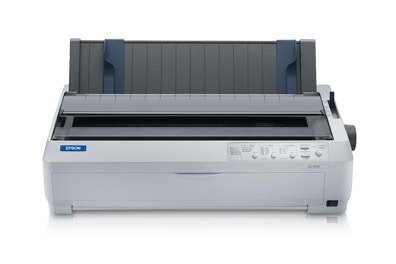

Epson LQ-2090 Dot Matrix Printer
With powerful 24-pin technology, the wide-format Epson® LQ-2090 delivers precision text and graphics, plus rugged reliability for critical print requirements. Offering print speeds of up to 529 cps and easy integration with existing printing formats, this robust performer is sure to increase productivity. With versatile 5-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon, it races through reports, purchase orders, invoices and more.
Printing Method: 24-pin, serial impact dot matrix
Print Direction: Bidirectional logic seeking for text and graphics printing.
Print Speed:
- High Speed Draft: 529 cps (12 cpi); 440 cps (10 cpi)
- Draft: 330 cps (10 cpi)
- Letter Quality: 110 cps (10 cpi)
Characters & Lines
Character Sets: 96 ASCII characters; 14 international character sets and 1 legal character set; 128 user-defined characters; Extended IBM style graphic characters; 5 code pages
Resident Bitmapped Fonts:
- Epson Draft 10, 12, 15 cpi
- Epson Roman 10, 12, 15 cpi proportional
- Epson San Serif 10, 12, 15 cpi proportional
- Epson Courier 10, 12, 15 cpi
- Epson Prestige 10, 12, 15 cpi
- Epson Script 10 cpi
- Epson OCRB 10 cpi
- Epson Script C proportional
- Epson Orator 10 cpi
- Epson Orator S 10 cpi
Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Characters per Line: 136 characters at 10 cpi
Formatting:
- 32 horizontal tabs
- line spacing in 1/6" or programmable (minimum 1/360" increments)
- skip over perforations in lines
- page length in lines or inches
Paper Handling
Forms: Continuous multipart, original plus 4 carbonless copies, maximum thickness .018"
Envelopes:
- No. 6 envelopes: 6.5" x 3.6"
- No. 10 envelopes: 9.5" x 4.1"
Width:
- Single sheets: 3.9" to 16.5"
- Continuous: 4" to 16"
- Cut-sheet feeder: 7.2" to 16.5"
Length:
- Single sheets: 3.9" to 14.3"
- Continuous: 4" to 22"
- Cut-sheet feeder: 10.1" to 14"
Labels: Minimum: 2.5" x 0.94"
Roll paper: 8.5" width
Paper Feed Speed:
- 45 millisecond per 1/6"
- 5" per second continuous feed
Paper Path:
- Manual insertion: Front or top in, top out
- Cut sheet feeder: Top in, top out
- Tractor: Front, rear or bottom in, top out
General
Software Drivers: Windows 95, 98, 2000, Me, XP and NT 4.0
Printer Language :
- Epson ESC / P2
- IBM PPDS
Interface:
- Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
- USB 1.1
- Type-B slot for optional interface cards
Input Buffer : 128 KB
Control Panel: Functions: Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection
Sound Level : 52 dBA
Rated voltage : 100 – 240V AC
Input voltage range : 90 – 264V
Rated frequency range : 50 – 60 Hz
Input frequency range : 49.5 – 60.5 Hz
Dimensions : 23.2" x 13.8" x 6.3" (W x D x H)
Weight : 21 lb
Reliability
Total Print Volume: 40 million lines (not including printhead)
MTBF: 20,000 POH (25% duty cycle)
Print head life: 400 million characters
Ribbon life: 8 million characters at 48 dots / character
| Product Name | Epson LQ-2090 Dot Matrix Printer |
|---|---|
| Printer Type | Dot Matrix |
| Wireless | No |
| Duplex | No |
| Copier | No |
| Color Printer | No |
| Manufacturer | Epson |
