Fluke 1503 Insulation Resistance Tester
Actual Stock Can Be Confirmed After Placing the Order.
SKU
Fluke-1503
AED 2,714
AED 2,585
Pay 4 interest-free payments of AED 421.00.Learn more
Fluke 1503 insulation resistance testers are rugged, compact, reliable & ideal for troubleshooting, preventive maintenance applications.

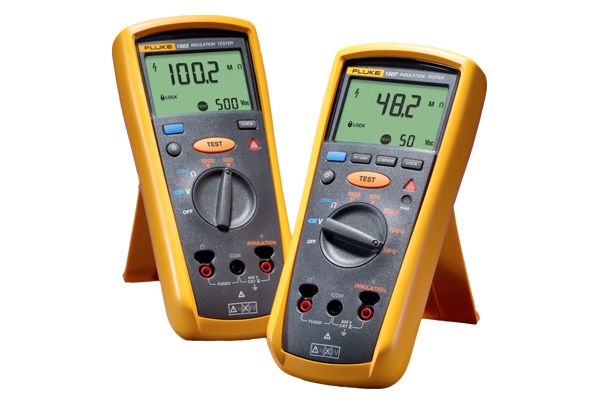

The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.Additional features, like the remote probe on this tool save both time and money when performing tests.
- Repetitive or hard-to-reach testing is easy with the remote test probe
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- Auto-discharge of capacitive voltage for added user protection
- AC/DC voltage: 0.1 V to 600 V
- 200 mA Continuity
- Resistance: 0.01 Ω to 20.00 kΩ
- Save battery power with auto power off
- Read measurements easily with large, backlit display
- CAT IV 600 V overvoltage category rating for added user protection
- Remote probe, test leads, probes and alligator clips included with each tester
- Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
- Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
- One year warranty
| Product Name | Fluke 1503 Insulation Resistance Tester |
|---|---|
| Weight | 0.25 Kg |
| Battery | Four AA batteries (NEDA 15A or IEC LR6) |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
| Certificates | CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition |
| Dimensions (WxHxD) mm | 5.0 x 10.0 x 20.3 cm |
| Manufacturer | Fluke |
